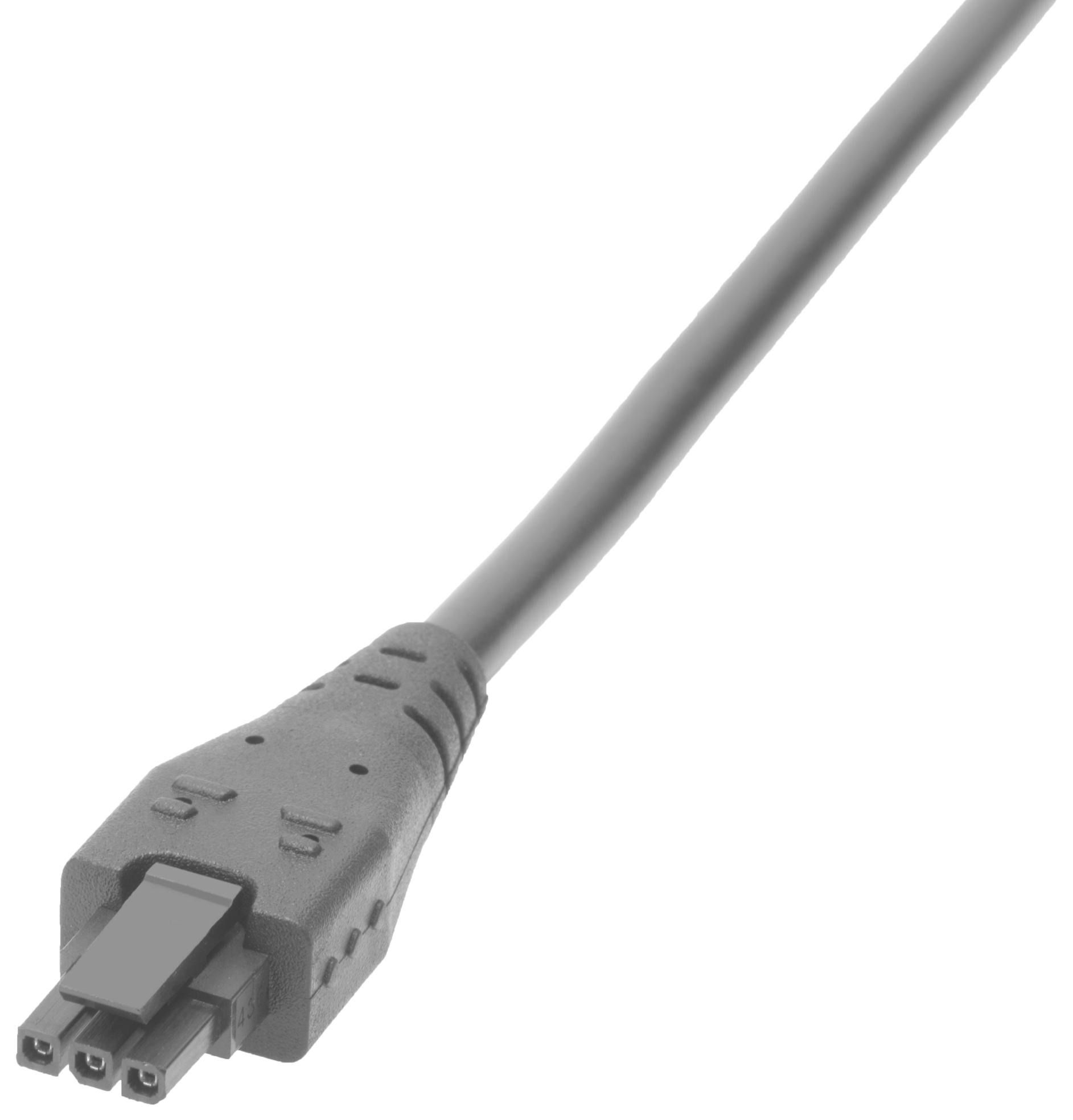

MOLEX 2147700310 Micro-Fit 3.0 Cable Assembly
The Micro-Fit 3.0 female-to-female cable assembly features a single-row, overmolded design with locking tangs for secure connections. Its polarized shape prevents mis-mating and ensures reliable signal transfer. Constructed with black nylon housing and tin-plated phosphor bronze terminals, it supports operating voltages up to 300V AC/DC and currents up to 8.5A per contact. Suitable for rugged applications, it withstands temperatures from -20°C to +80°C, offers at least 30 mating cycles, and is compatible with UL 2464 wire types, making it ideal for power and signal transmission in demanding environments.
MOLEX 2147700310 Micro-Fit 3.0 Cable Assembly Specifications:
- Series: Micro-Fit 3.0
- Type: Female-to-Female Cable Assembly
- Cable Length: 1.0m
- Circuits (Loaded): 3
- Color - Resin: Black
- Gender: Female-Female
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 1.85mm max.
- Wire Size AWG: 20
- Current - Maximum per Contact: 8.5A
- Voltage Rating: 300V AC/DC
- Operating Temperature Range: -20°C to +80°C
- Mating Cycles: Minimum 30
- Flammability Standard: UL 94V-0
- Termination Interface: Crimp or Compression
- Locking Tangs: Yes
- Overmolded Strain Relief: Yes
- Compatible Wire Types: UL 2464
- Housing Material: Black Nylon
- Reference Drawing Number: 193264653492
Buy the Molex Series Micro-Fit 3.0: Female-to-Female Cable Assembly 2147700310
Order the Molex Micro-Fit 3.0 cable assembly online today and enjoy dependable female-to-female connections ideal for power and signal applications. Its overmolded strain relief ensures durability, while the locking tangs provide secure mating. Designed to operate reliably from -20°C to +80°C and supporting up to 8.5A at 300V, this assembly is perfect for rugged environments. With a 1.0-meter length, black nylon housing, and compatibility with UL 2464 wiring, it guarantees excellent performance for demanding electronic and power systems in various industries.
Get Molex Micro-Fit 3.0 cable assembly 2147700310 today—designed for secure, reliable power and signal connections with robust overmolded construction.
