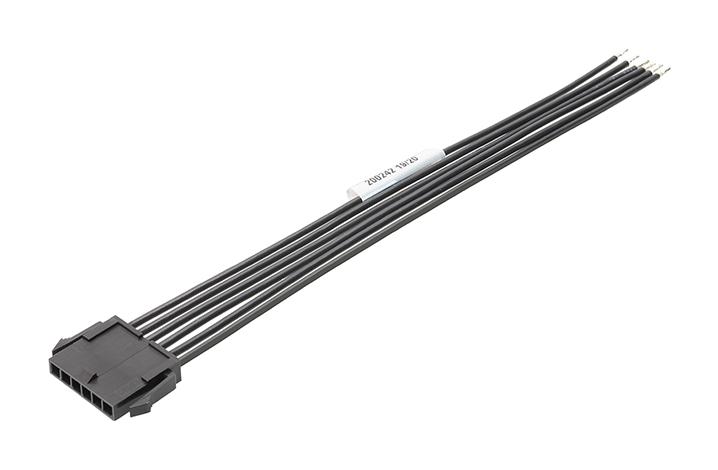

MOLEX 2147511061 Micro-Fit 3.0 Cable Assembly
The MOLEX 214751-1061 is a Micro-Fit 3.0 female-to-pigtail cable assembly designed for power and wire-to-board applications. This assembly offers a convenient off-the-shelf (OTS) solution for connecting devices. It features a 150mm length, 6 circuits, and tin plating for reliable signal transmission. Constructed with phosphor bronze and nylon materials, this assembly provides durability and flexibility. It is RoHS compliant and designed to mate with Micro-Fit 3.0 plug housings and headers, making it a versatile choice for various industrial and commercial applications.
MOLEX 2147511061 Micro-Fit 3.0 Cable Assembly Specifications:
- overview: Micro-Fit Connector System
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Micro-Fit 3.0-to-Pigtail
- cable_length: 150.00mm
- circuits_loaded: 6
- color_resin: Black
- material_metal: Phosphor Bronze
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin (Sn)
- material_resin: Nylon
- net_weight: 12.147/g
- number_of_rows: 1
- pitch_mating_interface: 3.00mm
- plating_min_mating: 1.016µm
- plating_min_termination: 1.016µm
- single_ended: Yes
- wire_insulation_diameter_max: 1.85mm
- wire_size_awg: 18
- wire_cable_type: Discrete Wire, UL 10002
- current_maximum_per_contact: 8.5A
- upc: 193264585380
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with_housing: Micro-Fit 3.0 Plug Housings 43640, Micro-Fit TPA Plug Housing 200875, Micro-Fit 3.0 Headers 43650
- drawing_number: 2147511061-000
Buy the 214751-1061 MOLEX Micro-Fit 3.0 Cable Assembly | myMectronic
Purchase the MOLEX 214751-1061 Micro-Fit 3.0 Cable Assembly securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2147511061?
You can click on the BUY or RFQ button to purchase 2147511061 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147511061?
You can download the 2147511061 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147511061?
MOLEX
