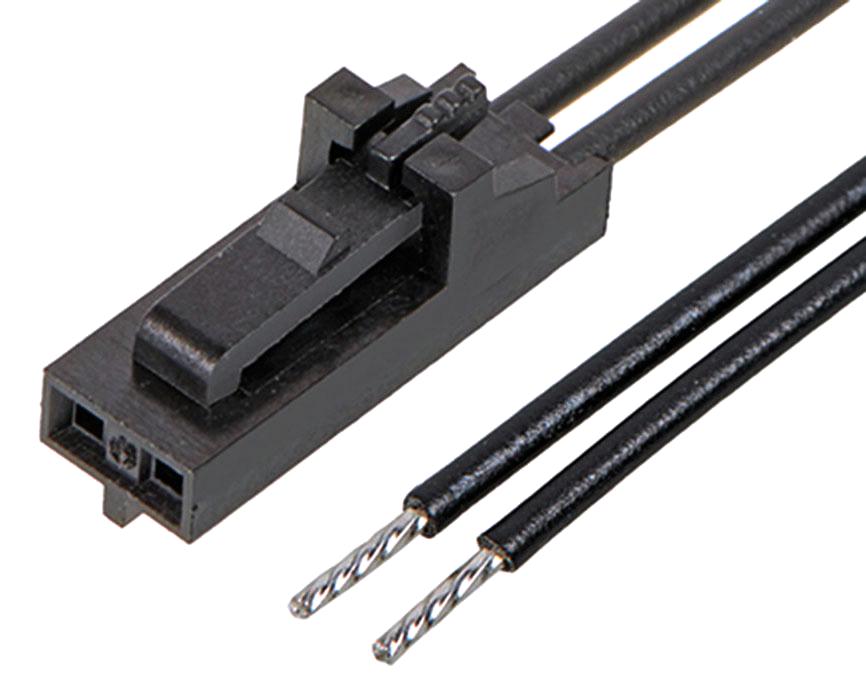

MOLEX 2162711020 Discrete Wire Assembly
This versatile off-the-shelf stackable linear positive lock cable assembly supports prototyping and mass production across various industries. It features multiple termination styles including crimp, FFC, and IDT, with two independent contact points for reliable electrical performance. A connector position assurance lock prevents disengagement in high-vibration environments. The low-profile housing accommodates vertical and right-angle headers, and the assembly rated for 600V AC/DC and 3A operates in temperatures from -40°C to +105°C. Constructed with polyester alloy housing and tin-plated phosphor bronze contacts, it supports up to 25 mating cycles, ensuring durability and reliability.
MOLEX 2162711020 Discrete Wire Assembly Specifications:
- Cable Length: 50.00mm
- Number of Circuits: 2
- Color - Resin: Black
- Gender: Female-Pigtail
- Lock to Mating Part: Yes
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Net Weight: 0.932 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- Wire/Cable Type: Discrete Wire Assembly
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Number of Mating Cycles: Up to 25
- Certifications: UL 11028, CSA LR19980
- RoHS Compliant, Halogen-Free not applicable
Buy the Molex Series SL Discrete Wire Assembly: 2162711020
Order the Molex 2162711020 cable assembly online today and enjoy reliable connections across prototyping and mass production. Featuring multiple termination styles including crimp, FFC, and IDT, this assembly supports 600V and 3A, ideal for demanding industrial applications. Its low-profile stackable design with vertical and right-angle headers ensures flexible integration. Rated for 25 mating cycles and operating from -40°C to +105°C, built with durable polyester alloy housing and tin-plated phosphor bronze contacts, it guarantees long-lasting performance and safety compliance.
Buy Molex 2162711020 now and experience unmatched reliability and performance with versatile termination options and high electrical standards.
Frequently Asked Questions
Where can I buy MOLEX 2162711020?
You can click on the BUY or RFQ button to purchase 2162711020 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162711020?
You can download the 2162711020 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162711020?
MOLEX
