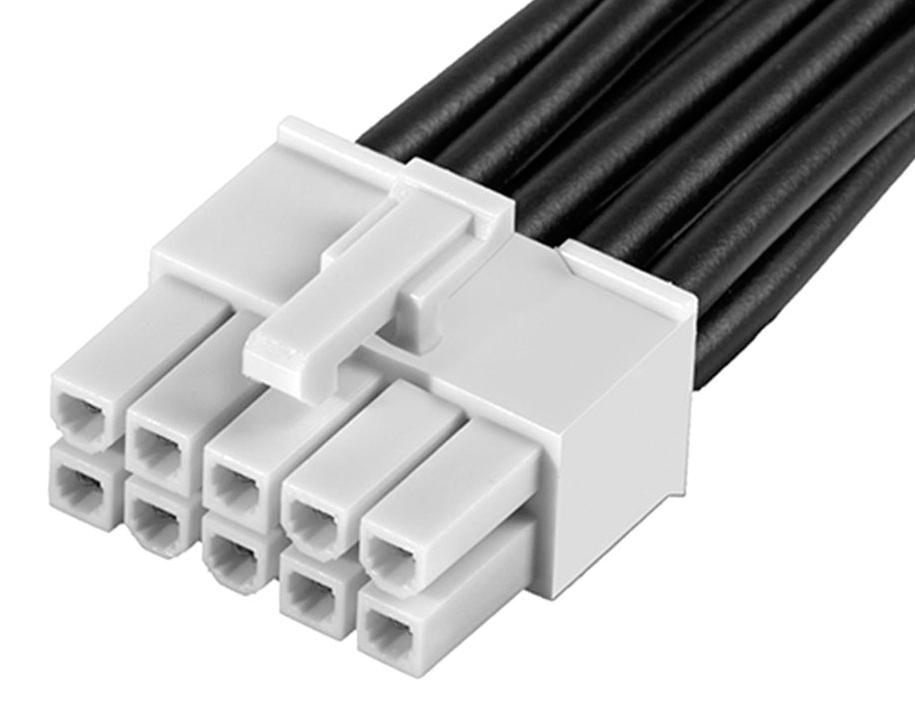

MOLEX 2153272101 Power Cable Assembly
This Mini-Fit Jr. power cable assembly features dual-end connectors with a 150mm length, gold-plated contacts, and a black nylon insulator. It supports 10 circuits, rated at 9.0A and 600V, making it suitable for reliable wire-to-wire power connections in compact electronic and electrical systems. The assembly employs crimp or compression termination styles, with wire sizes ranging from 16 AWG, and is compliant with RoHS, China RoHS, and REACH standards. Perfect for applications requiring durable, high-current connections within power distribution systems.
MOLEX 2153272101 Power Cable Assembly Specifications:
- Cable Length: 150.00mm
- Number of Circuits: 10
- Color: Black
- Gender: Male-Male
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Size AWG: 16
- Wire Insulation Diameter: 1.80-3.10mm
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Termination Style: Crimp or Compression
Buy the Buy Molex Mini-Fit Jr. Power Part Number 2153272101 Online
Purchase the Molex Mini-Fit Jr. power cable assembly online for reliable high-current connections in electronic systems. This dual-end connector assembly measures 150mm in length, features gold-plated contacts for superior conductivity, and supports 10 circuits rated at 9A and 600V. Made with durable materials including brass and nylon, it ensures excellent performance and longevity. Perfect for power distribution applications, this assembly guarantees secure and efficient connections, with RoHS compliance for environmentally responsible sourcing. Order now for fast delivery and seamless installation.
Get Molex 2153272101 today—built for high-current power distribution and long-lasting durability.
Frequently Asked Questions
Where can I buy MOLEX 2153272101?
You can click on the BUY or RFQ button to purchase 2153272101 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153272101?
You can download the 2153272101 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153272101?
MOLEX
