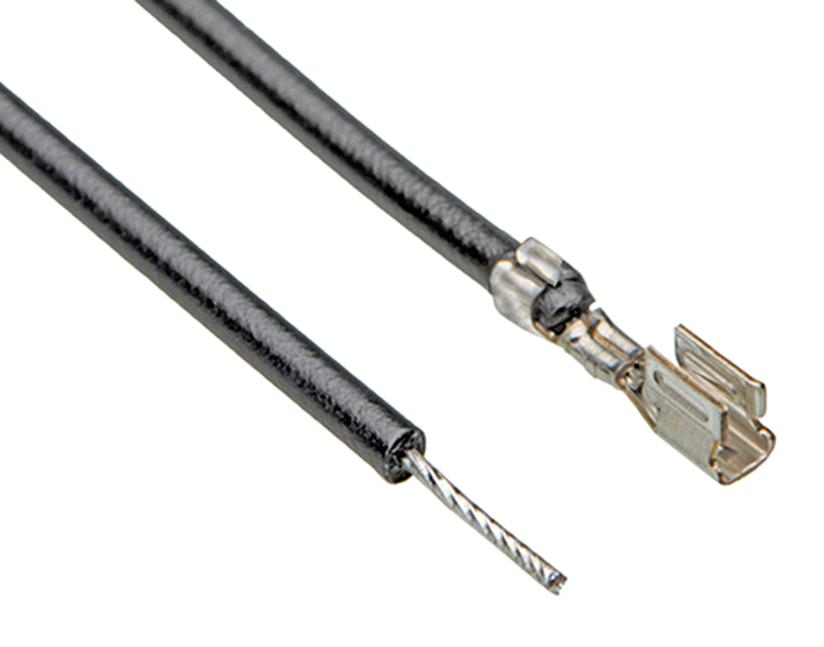

MOLEX 2175111102 L1NK 250 Cable Assembly
The MOLEX 217511-1102 is a pre-crimped lead cable assembly within the L1NK 250 series. This assembly provides a convenient, ready-to-use connection solution between two L1NK 250 female connectors. The tin plating ensures reliable electrical contact, while the PVC resin provides insulation and durability. Commonly used in industrial automation, consumer electronics, and automotive applications where a pre-terminated cable is required.
Authorized Distributors
Source:Mouser Electronics
Part No:217511-1102
Stock:1440
Inv Date:05-30-2026
Price: Unit price: $0.91
Buy/RFQ:
Source:RS Americas, Inc
Part No:217511-1102
Stock:0
Inv Date:05-29-2026
Price: Unit price: $0.75
Buy/RFQ:
MOLEX 2175111102 L1NK 250 Cable Assembly Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 217511
- assembly_configuration: Pre-crimped Lead Only
- connector_type: L1NK 250
- circuit_count: 1
- color: Black (Resin)
- material_metal: Copper Alloy
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: PVC
- net_weight: 0.525/g
- packaging_type: Bag Single Ended
- cable_length: 150.00mm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.42mm-1.60mm
- wire_size_awg: 26
- wire_cable_type: UL 1569
- current_max_per_contact: 6.5A
- voltage_max: 250V AC (RMS)/DC
- upc: 195842119512
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- drawing_number: 2175112101-000
