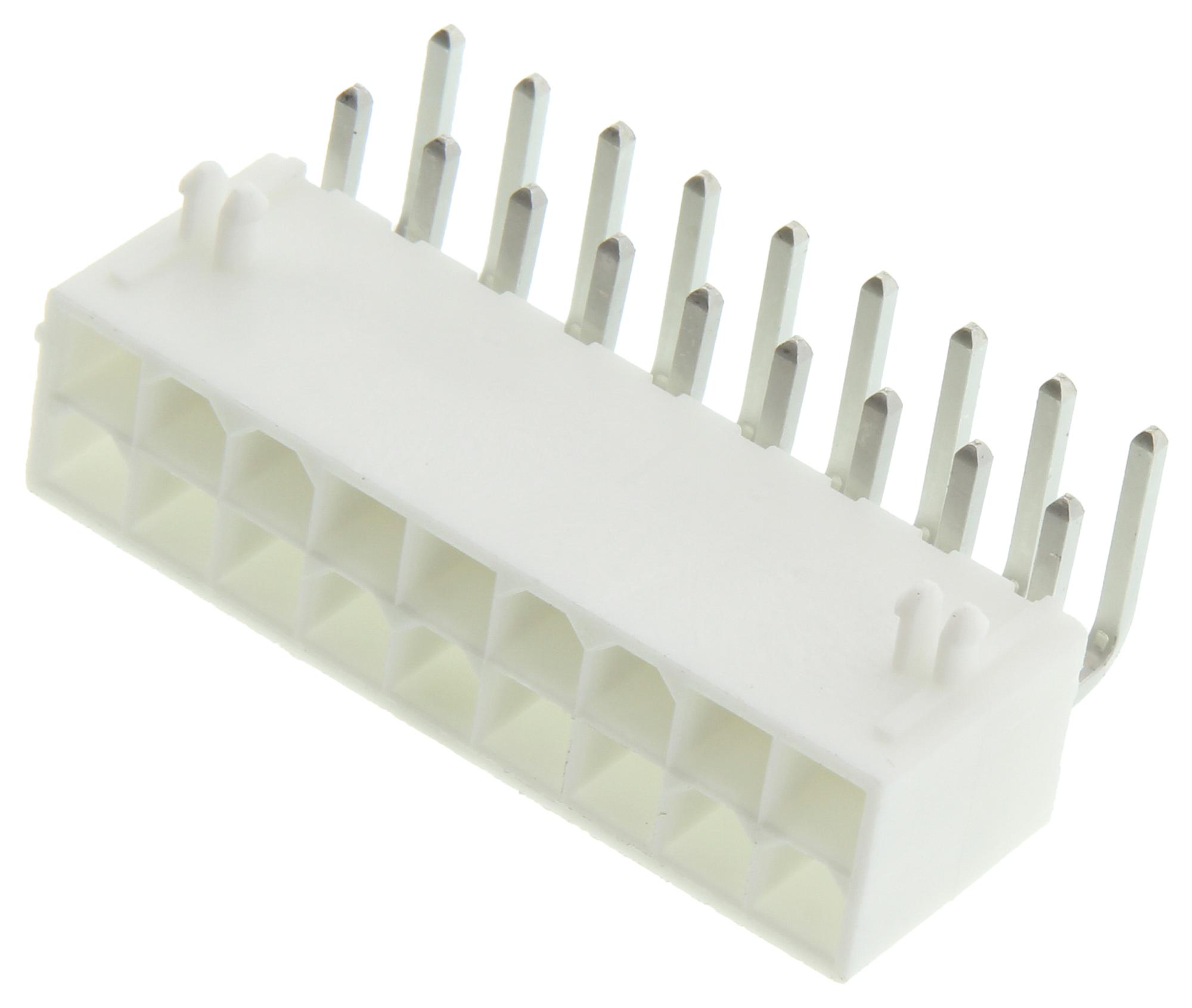

MOLEX 39300180 Power Header
The Molex Mini-Fit Jr. Power Connector is a high-current, dual-row, right-angle header designed for reliable wire-to-board power connections. Crafted from durable PA Polyamide Nylon 6/6 with 94V-0 flammability rating and matte tin plating, it supports up to 13A per circuit and operates within -40°C to +105°C. Featuring a 4.20mm pitch, PCB mounting with thru-hole termination, and a shrouded, polarized design, this connector ensures secure mating and longstanding durability. It is RoHS and UL compliant, suitable for power supply applications in various electronic systems.
MOLEX 39300180 Power Header Specifications:
- Number of Circuits: 18
- Current per circuit: 13A max
- Voltage: 600V maximum
- Material - Resin: PA Polyamide Nylon 6/6
- Flammability: 94V-0
- Plating - Mating and Termination: Matte Tin, 2.54μm minimum
- Orientation: Right Angle
- PCB Thickness - Recommended: 1.78mm
- Pitch - Mating and Termination Interface: 4.20mm
- Temperature Range: -40°C to +105°C
- Termination Interface: Through Hole
- PCB Locator: Yes
- RoHS Compliance: Yes
- UL Certification: Yes
- Voltage Rating: 600V
- Current per contact: 13A
- Surface Mount Compatible: No
- Stackable: No
- Shrouded Fully: Yes
- Package Type: Bag
- Dimensions and physical features include a 3.60mm tail length and a net weight of 5.986 grams.
- Guide to mating: Mates with 5557 Mini-Fit Jr. Receptacle Housing, polarized to ensure proper connection.
