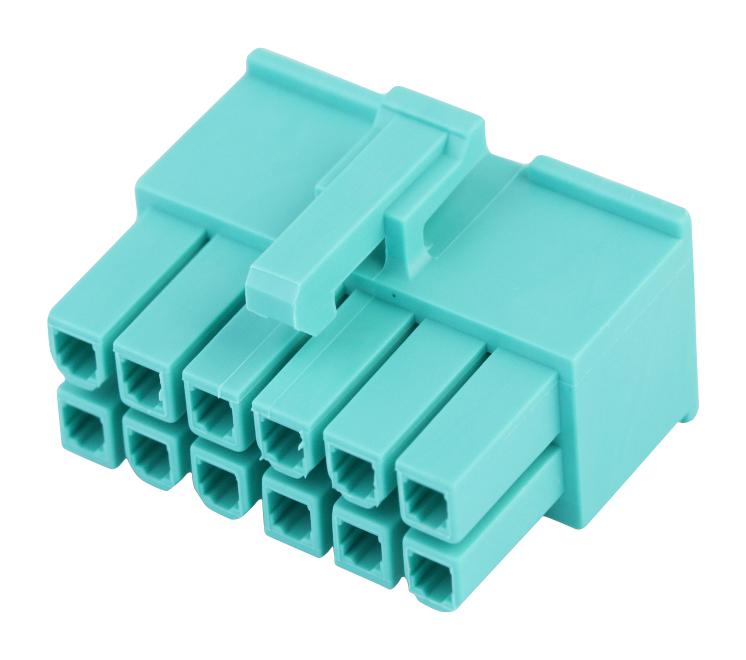

MOLEX 469920830 Mini-Fit Versa Color Receptacle
The MOLEX 46992-0830 Mini-Fit Versa Color Receptacle Housing is a robust and reliable connector solution for a variety of applications including power distribution, wire-to-board connections, and wire-to-wire harnesses. Constructed from durable nylon 6/6 and rated UL 94V-0, this housing provides excellent insulation and flame retardancy. Its dual-row design accommodates multiple circuits, and the green color provides visual differentiation. Compatible with Mini-Fit Versa Color Plug and Header series, this receptacle housing ensures secure and efficient connections in industrial and commercial settings.
MOLEX 469920830 Mini-Fit Versa Color Receptacle Specifications:
- circuits_maximum: 8
- color_resin: Green
- gender: Receptacle
- glow_wire_capable: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 1.740
- number_of_rows: 2
- packaging_type: Bag
- pitch_mating_interface_mm: 4.20
- pitch_termination_interface_mm: 4.20
- polarized_to_mating_part: Yes
- temperature_range_operating_c: -40° to +105°C
- upc: 195842021891
- series: 46992
- material_info_drawing_numbers_packaging_specification: PK-5557-002-000
- material_info_drawing_numbers_product_specification: PS-5556-001-001
- material_info_sales_drawing: SD-46992-0000-000
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
Buy the 46992-0830 MOLEX Mini-Fit Versa Color Receptacle | myMectronic
Purchase the genuine MOLEX 46992-0830 Mini-Fit Versa Color Receptacle Housing securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 469920830?
You can click on the BUY or RFQ button to purchase 469920830 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 469920830?
You can download the 469920830 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 469920830?
MOLEX
