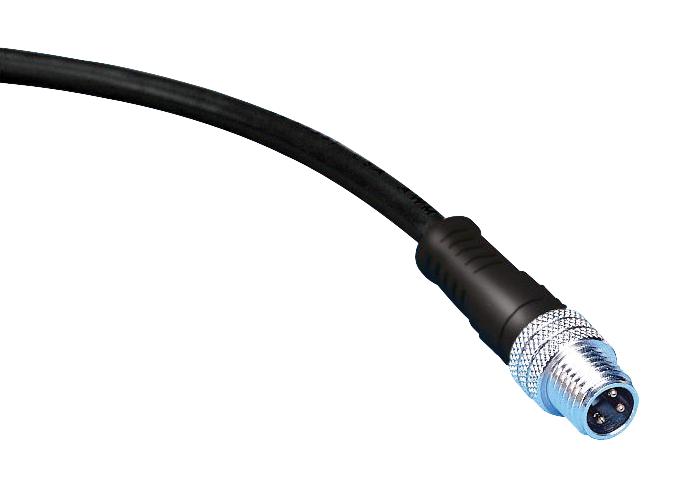

MOLEX 1200060634 Industrial Power Cordset
A high-quality 5-pole cordset designed for reliable wiring and connection in industrial and electronic applications. Featuring PVC black cable, copper alloy contacts with gold over nickel plating, and Viton o-rings, this cordset ensures durability and protection. It operates efficiently within a temperature range of -30°C to 80°C and is rated for 250 VAC/VDC, supporting a maximum of 4 amps. The finished length is approximately 6.56 feet, with optional extensions up to 2.0 meters. Suitable for professional wiring setups requiring secure, corrosion-resistant connections.
MOLEX 1200060634 Industrial Power Cordset Specifications:
- Voltage Rating: 250 VAC/VDC
- Amperage Rating: Max. 4 Amps
- Operating Temperature: -30°C to 80°C
- Finished Length: 6.56 feet (+3.50 inches/-0), approximately 2.0 meters
- Cable Material: PVC black cable with 300V conductors
- Connector Material: Brass with nickel plating
- Contact Material: Copper alloy with gold coating
- O-ring Material: Viton, Red
- Connector Configuration: 5-pole
- Approval Certifications: UL Style 2464, CSA
- Protection Class: P67
- Connector Style: Female face view, 5-pin
- Dimensions: Length varies with optional extensions, typical ins. thickness 0.030 inches, diameter 0.070 inches
Buy the Molex Series Cordset: 5-Pole Industrial Power Cable 1200060634
Secure your electrical projects with our reliable industrial power cordset featuring 5-pole configuration, PVC black cable, and gold-plated contacts. Rated for 250 VAC and 4 amps, this durable connector operates efficiently from -30°C to 80°C, ensuring safety and performance. With a finished length of approximately 6.56 feet and optional extensions up to 2.0 meters, it is ideal for industrial and specialized wiring needs. Trust the quality and certification standards from Molex to keep your setup secure and efficient.
Order your Molex Series 5-Pole Cordset today and give your projects the dependable quality they deserve for secure electrical connections.
Frequently Asked Questions
Where can I buy MOLEX 1200060634?
You can click on the BUY or RFQ button to purchase 1200060634 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1200060634?
You can download the 1200060634 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1200060634?
MOLEX
