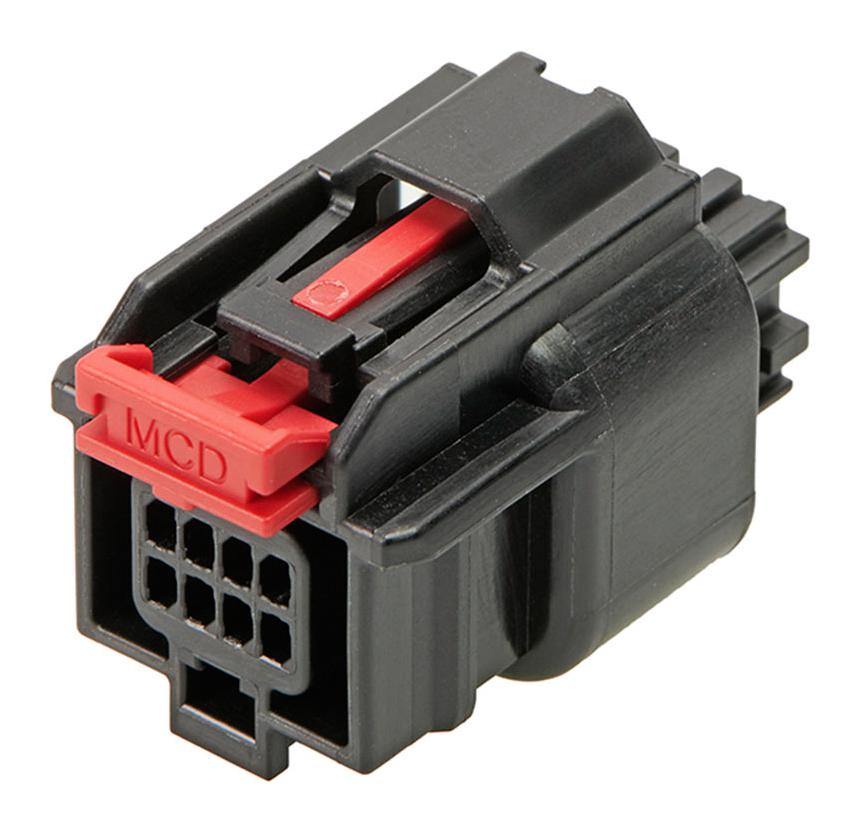

MOLEX 348944001 Sealed Receptacle
The Mini50 Sealed Receptacle Housing is a durable, dual-row, wire-to-board connector designed for automotive and power applications. It features a sealed housing with polarization options and is made from high-quality SPS/Nylon resin, suitable for operating temperatures from -40°C to +105°C and -40°C to +125°C. The connector accommodates up to 8 circuits, is polarization-enabled, stackable, panel mountable, and RoHS compliant. It offers reliable mating with a pitch of 1.80mm, ensuring secure, vibration-resistant connections in harsh environments, ideal for sealed electrical systems.
MOLEX 348944001 Sealed Receptacle Specifications:
- Series: Mini50 Sealed
- Circuits: 8
- Color - Resin: Black
- Gender: Receptacle
- Material - Resin: SPS/Nylon
- Net Weight: 4.918 grams
- Number of Rows: 2
- Packaging Type: Bag
- Pitch - Mating Interface: 1.80mm
- Temperature Range - Operating: -40°C to +105°C and -40°C to +125°C
- RoHS: Compliant
- Halogen-Free: Yes
- Stackable: Yes
- Panel Mount: Yes
- Lock to Mating Part: Yes
- Keying to Mating Part: Yes
Buy the Molex Series Mini50 Sealed Receptacle: 348944001
Purchase the Molex Mini50 Sealed Receptacle connector easily online. Designed for demanding automotive and power applications, it features a sealed housing, dual-row design, polarization, and stackability. Made from high-quality SPS/Nylon resin, it ensures reliable connections from -40°C to +125°C, providing waterproof, vibration-resistant performance. This RoHS-compliant, halogen-free connector supports up to 8 circuits, is panel-mountable, and suitable for wire-to-board applications. Secure your electrical systems with this high-quality, easy-to-install connector today.
Get Molex 348944001 today—built for precision and long-lasting durability in sealed automotive and power electrical systems.
Frequently Asked Questions
Where can I buy MOLEX 348944001?
You can click on the BUY or RFQ button to purchase 348944001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 348944001?
You can download the 348944001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 348944001?
MOLEX
