MOLEX 2153432205 Power Pigtail

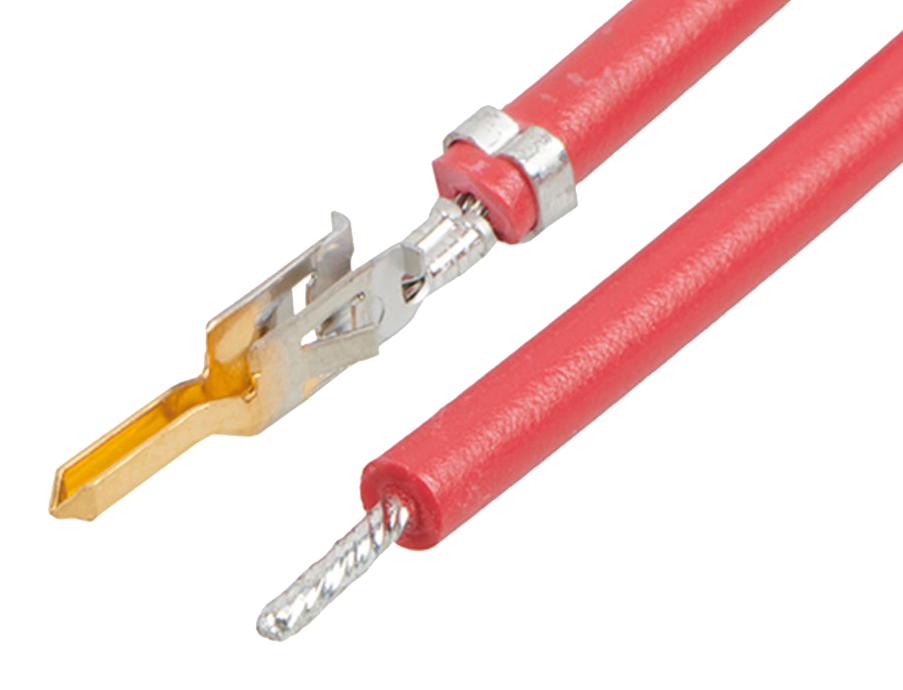

The Mini-Fit Jr. male-to-pigtail pre-crimped lead features 20 AWG copper wires with gold-plated contacts, offering reliable electrical connection for power applications. It measures 450mm in length and is designed for easy assembly with connector-to-connector configurations. Made of brass with gold and tin plating, it ensures excellent corrosion resistance and durability. The pigtail is suitable for use with Mini-Fit Jr. and BMI plug housings, rated at a maximum of 9A and 600V, providing a robust connection in various electronic systems. RoHS compliant and halogen-free, it supports eco-friendly manufacturing standards.
MOLEX 2153432205 Power Pigtail Specifications:
- Wire Gauge: 20 AWG
- Wire Length: 450 mm
- Wire Insulation Diameter: 1.80-3.10 mm
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Contact Material: Brass
- Color - Resin: Red
- Gender: Male-Pigtail
- Circuits (Loaded): 1
- Maximum Current: 9.0A
- Maximum Voltage: 600V
- Packaging: Bag
- Application: Power, Wire-to-Wire
- Assembly Configuration: Connector to Connector
- Standards: RoHS compliant, UL 1015
- Use With: Mini-Fit Jr. Plug Housing 5559, BMI Plug Housing 42475
Buy the Buy Molex Mini-Fit Jr. Part Number 2153432205 Online
Order the Molex power pigtail with 20 AWG wires, 450mm length, gold-plated contacts, and robust brass construction online today. Designed for seamless connector-to-connector assemblies, it ensures efficient power transfer up to 9A and 600V ratings. Compatible with Mini-Fit Jr. and BMI housings, this RoHS-compliant green product offers corrosion resistance and durability. Ideal for reliable electrical connections in electronic systems, it is packaged in convenient bags for easy handling and installation in various industrial and power applications.
Buy Molex 2153432205 now and experience unmatched reliability and performance in power connections with high-quality gold-plated contacts and eco-friendly materials.
Frequently Asked Questions
Where can I buy MOLEX 2153432205?
You can click on the BUY or RFQ button to purchase 2153432205 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153432205?
You can download the 2153432205 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153432205?
MOLEX
