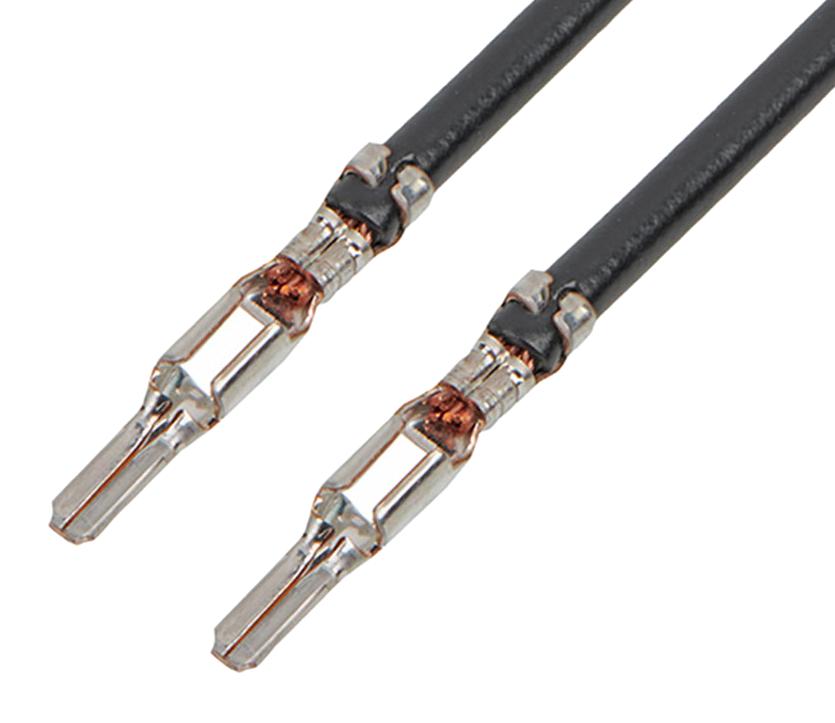

MOLEX 2178421122 Mizu-P25 Pre-Crimped Lead
The MOLEX 217842-1122 is a pre-crimped lead assembly specifically engineered for Mizu-P25 connector systems. This assembly provides a ready-to-use connection solution, eliminating the need for on-site crimping. With a tin plating for enhanced conductivity and corrosion resistance, a 150mm length for flexibility, and a 20 AWG wire gauge, it's ideal for signal transmission in wire-to-wire applications across various industrial sectors. Its pre-crimped design simplifies installation and ensures reliable performance.
MOLEX 2178421122 Mizu-P25 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Signal, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mizu-P25
- cable_length: 150.00mm
- circuits_loaded: 1
- color: Black (Resin)
- material_metal: Phosphor Bronze
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 1.193/g
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.40-1.90mm
- wire_size_awg: 20
- wire_cable_type: UL 10002
- voltage_maximum: 125V
- upc: 195842149977
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per D(2020)9139-DC
- halogen_free_status: Not Low-Halogen
- drawing_number: 2178421121-000
Buy the 217842-1122 MOLEX Mizu-P25 Pre-Crimped Lead | myMectronic
Purchase the MOLEX 217842-1122 pre-crimped lead assembly securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2178421122?
You can click on the BUY or RFQ button to purchase 2178421122 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2178421122?
You can download the 2178421122 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2178421122?
MOLEX
