MOLEX 2153432221 Power Connector

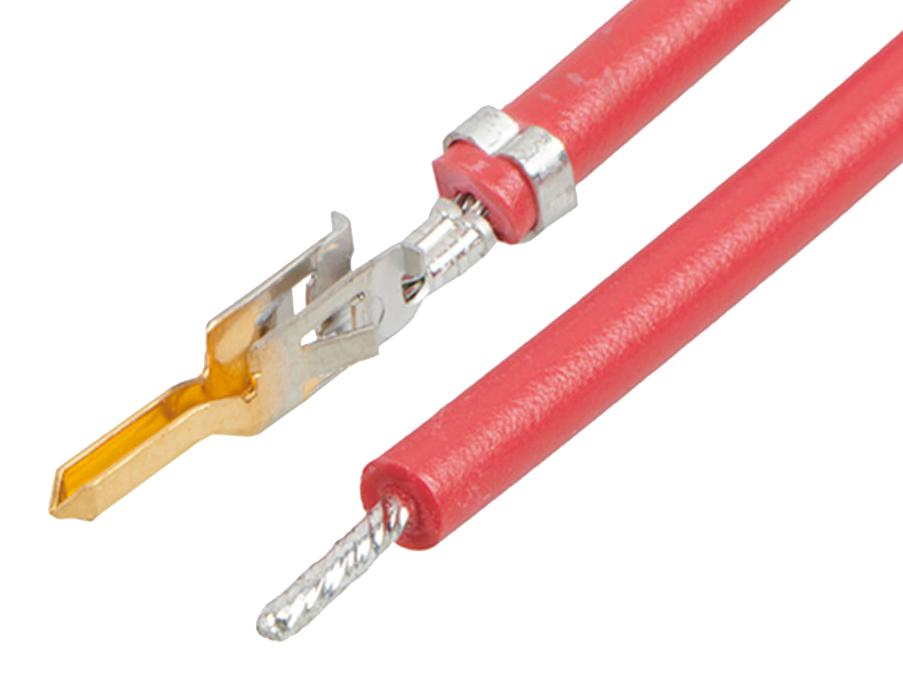

The Mini-Fit Jr. Male-to-Pigtail Pre-Crimped Lead is a reliable power connector suitable for wire-to-wire applications. Crafted with brass and gold-plated for enhanced conductivity and corrosion resistance, it measures 75 mm in length and supports 16 AWG wire with a diameter of 1.80-3.10 mm. Designed for high-current use, it withstands up to 9.0A and 600V, making it ideal for power supply and electrical wiring in industrial and electronic applications. Its red housing ensures easy identification during wiring processes.
MOLEX 2153432221 Power Connector Specifications:
- Material: Brass
- Plating: Mating Gold
- Termination: Crimp or Compression
- Cable Length: 75.00mm
- Wire Size: 16 AWG
- Wire Insulation Diameter: 1.80-3.10mm
- Voltage Rating: 600V
- Current Rating: 9.0A
- Color: Red
- Packaging Type: Bag
- Single Ended: Yes
- RoHS Compliant
- Environment: Not Halogen, Not Low-Halogen
- Application: Power, Wire-to-Wire
- Assembly Configuration: Pre-crimped Lead
Buy the Molex 2153432221 – Reliable Power Connection for Industrial Applications
Order the Molex Power Connector today for reliable power delivery and secure wire-to-wire connections. Designed with gold-plated brass for excellent conductivity and durability, it supports 16 AWG wires up to 600V and 9A current capacity. The 75mm length makes it suitable for compact electronic and industrial assemblies. Its pre-crimped design simplifies installation, ensuring quick and secure termination. Ideal for power applications requiring high performance, it is RoHS compliant and halogen-free, providing environmentally friendly, durable connectivity solutions for professionals and manufacturers.
Get Molex 2153432221 today—built for precision and long-lasting durability in power and wire-to-wire connections.
Frequently Asked Questions
Where can I buy MOLEX 2153432221?
You can click on the BUY or RFQ button to purchase 2153432221 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153432221?
You can download the 2153432221 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153432221?
MOLEX
