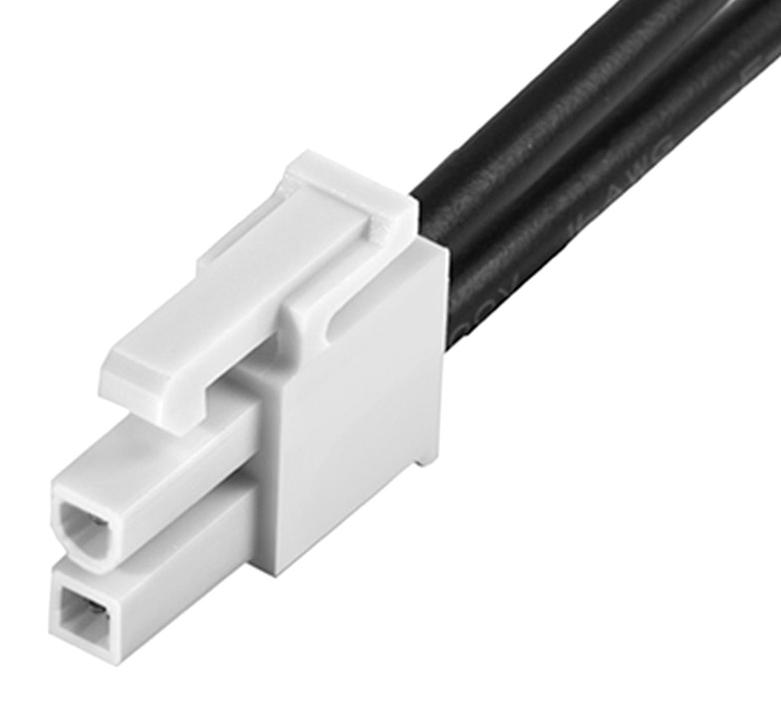

MOLEX 2153271022 Mini-Fit Jr. Cable Assembly
The MOLEX 215327-1022 is a Mini-Fit Jr. male-to-male off-the-shelf (OTS) cable assembly, ideal for power and wire-to-wire applications. It boasts a dual-row configuration, tin plating for enhanced conductivity, and a black nylon resin housing. With a 300mm cable length and a maximum current rating of 9.0A at 600V, this assembly provides a secure and efficient connection for various industrial and commercial applications. It is RoHS compliant and REACH SVHC substances are not contained.
MOLEX 2153271022 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr. Both Ends
- cable_length: 300.00mm
- circuits_loaded: 2
- color_resin: Black
- material_metal: Brass
- plating_mating: Tin (Sn)
- plating_termination: Tin
- material_resin: Nylon
- net_weight_g: 16.565
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.540µm
- plating_min_termination: 2.540µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_mm: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact_a: 9.0
- voltage_maximum_v: 600
- upc: 193264590254
- material_info: Not Low-Halogen
- sales_drawing: 2153271021-000
