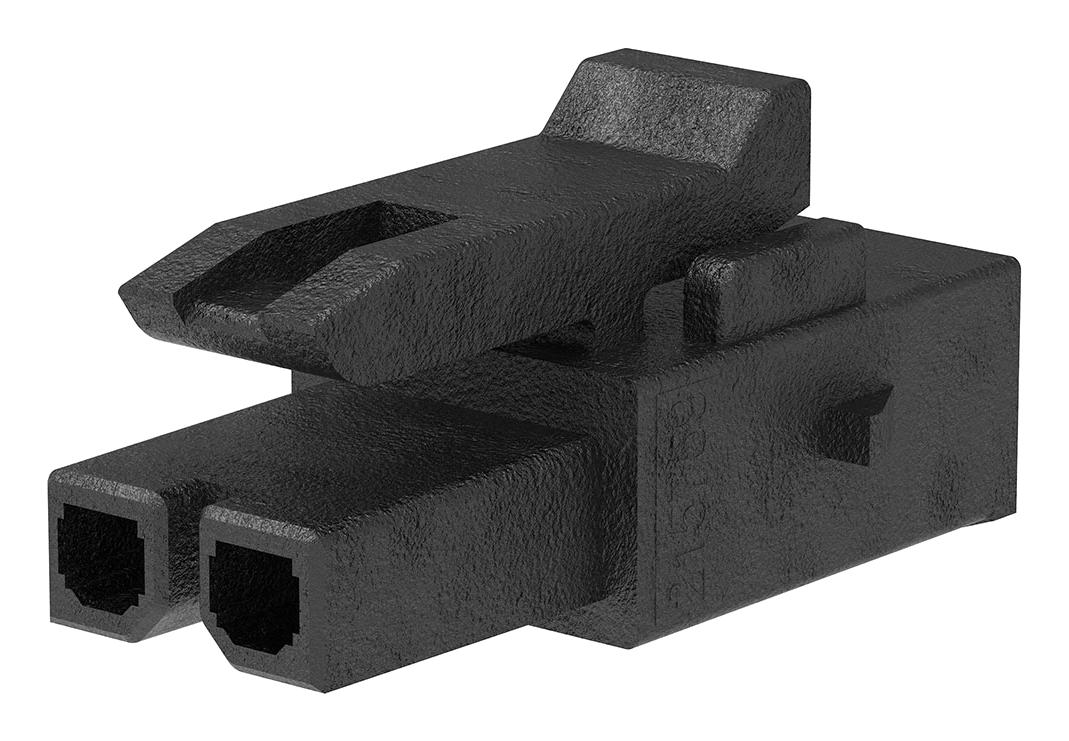

MOLEX 2157591002 Micro-Fit+ Receptacle Housing
The MOLEX 2157591002 Micro-Fit+ Receptacle Housing is a critical component in wire-to-board connection systems. Designed for power applications, this housing provides a secure and reliable connection with its polarized and keyed design. Constructed from durable nylon, it offers excellent insulation and temperature resistance (-40°C to +105°C). The housing is glow-wire capable, meeting stringent safety standards, and is part of the Micro-Fit+ connector system, known for its versatility and ease of use in various industrial and consumer electronics applications.
MOLEX 2157591002 Micro-Fit+ Receptacle Housing Specifications:
- Product Family: Crimp Housings
- Series: 215759
- Application: Power, Wire-to-Board
- Overview: Micro-Fit+ Connector System
- UPC: 193264919789
- Circuits (maximum): 2
- Color - Resin: Black
- Gender: Receptacle
- Glow-Wire Capable: Yes
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Material - Resin: Nylon
- Net Weight: 0.347/g
- Number of Rows: 1
- Packaging Type: Bag
- Panel Mount: No
- Pitch - Mating Interface: 3.00mm
- Pitch - Termination Interface: 3.00mm
- Polarized to Mating Part: Yes
- Temperature Range - Operating: -40° to +105°C
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
- RoHS Phthalates: Not Contained
- Mates With: Micro-Fit+ Headers 216571, 215760
