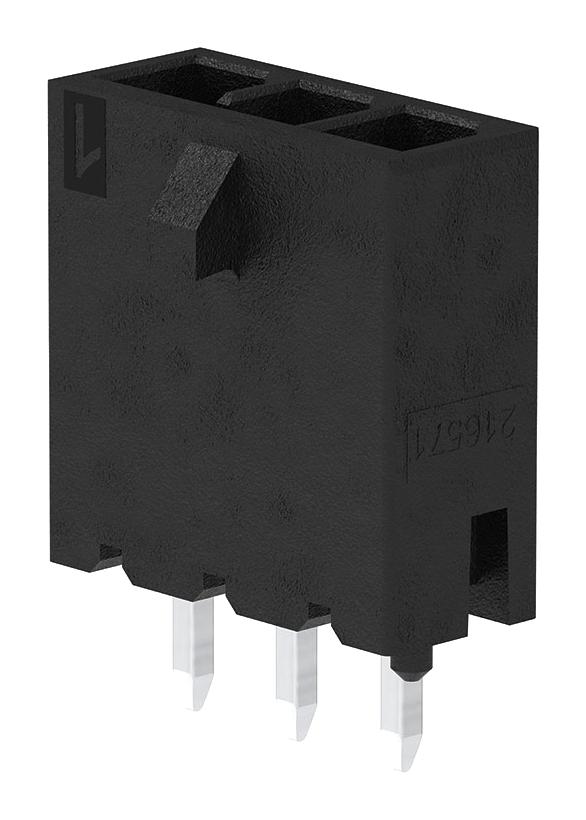

MOLEX 2165713003 Micro-Fit+ Connector
This is a black-colored, 3mm pitch, single-row Micro-Fit+ vertical header from the 216571 series. It features 0.76 µm gold-plated contacts for reliable connectivity, with a high copper alloy metal structure and liquid crystal polymer resin for durability. The connector is polarized for mating and PCB insertion, shrouded for safety, and includes a through-hole termination interface. It is UL 94V-0 flame-rated and glow-wire capable, suitable for operating temperatures from -40°C to +105°C. Each contact can handle a maximum current of 12.5A, with a voltage rating of 600VAC/DC.
MOLEX 2165713003 Micro-Fit+ Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 3
- Color - Resin: Black
- Material - Metal: High Copper Alloy
- Material - Plating Mating: Gold, 0.76 µm
- Material - Resin: Liquid Crystal Polymer
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 12.5A
- Voltage - Maximum: 600VAC/DC
- Durability (mating cycles max): 200
- Glow-Wire Capable: Yes
- UL 94V-0 Flame Rating: Yes
- Orientation: Vertical
- Termination Interface: Through Hole
- Shrouded: Yes
- Polarized: Yes
Buy the Buy Molex Micro-Fit+ Vertical Header Part Number 2165713003 Online
Purchase Molex Micro-Fit+ vertical header, Part Number 2165713003, online today for high reliability power connections. The connector features a 3.00mm pitch, 3 circuits, gold-plated contacts, and a high copper alloy structure. Its UL 94V-0 flame rating and glow-wire capability ensure safety, while its temperature range of -40°C to +105°C guarantees performance in demanding environments. Ideal for power or signal wiring with a shrouded, polarized design and through-hole termination for secure installation, providing long-lasting durability and excellent electrical properties.
Get Molex 2165713003 today—built for reliable connections, high durability, and safety in power and signal applications.
Frequently Asked Questions
Where can I buy MOLEX 2165713003?
You can click on the BUY or RFQ button to purchase 2165713003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2165713003?
You can download the 2165713003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2165713003?
MOLEX
