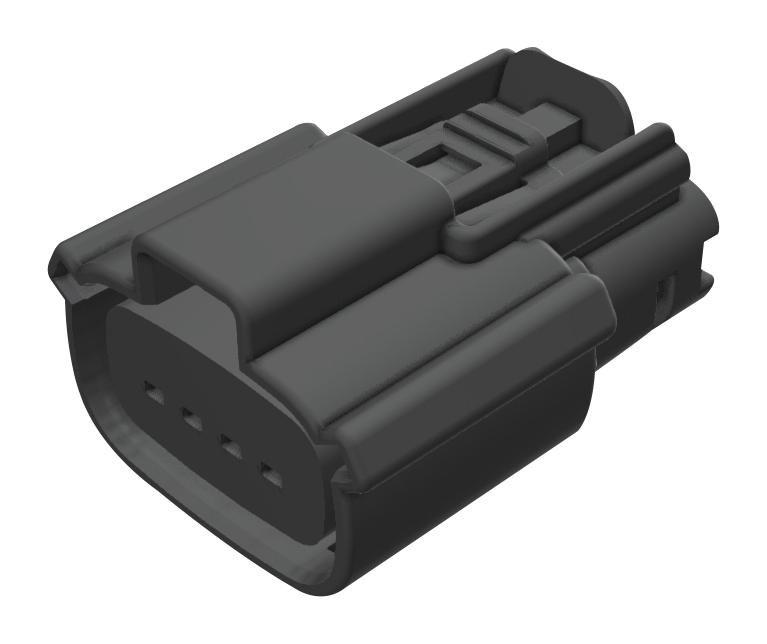

MOLEX 334710406 MX150 Connector
The MOLEX 33471-0406 is a robust MX150 Sealed Female Connector within the 33471 series. This connector is designed for demanding applications requiring a secure and reliable connection, such as power distribution, wire-to-board, and wire-to-wire configurations. It incorporates features like polarization and connector position assurance (CPA) to ensure proper mating and prevent misconnections. Constructed with modified polystyrene alloy and polyester materials, it offers durability and resistance to environmental factors. It is RoHS compliant and suitable for use in various industrial settings.
MOLEX 334710406 MX150 Connector Specifications:
- circuits_maximum: 4
- color: Black, Natural
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: Modified Polystyrene
- material_alloy: Polyester
- net_weight_g: 9.145
- number_of_rows: 1
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 3.50
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +125°C
- eu_elv_compliant: Yes
- china_rohs: Not Relevant
- rohs_compliant: Yes
- phthalates: Not Contained
- halogen_free_status: Not Relevant
- lead_free_process_capability: N/A
- mates_with: 33481 Male Single Row Sealed Connector
- use_with: 33012 MX150 Female Terminal, 343450001 MX150 Cavity Plug Sealed
