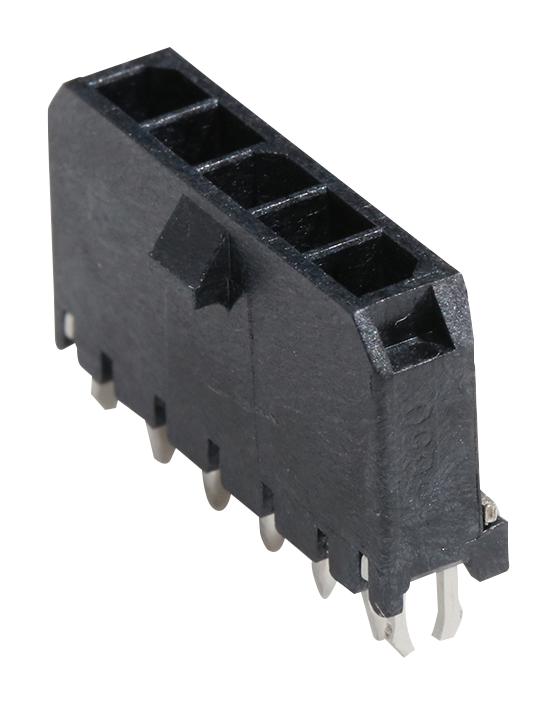

MOLEX 436500519 Micro-Fit 3.0 Header
The MOLEX 43650-0519 is a Micro-Fit 3.0 vertical header, part of the Micro-Fit 3.0 Connector System family. This header is designed for power and wire-to-board applications, offering a robust and reliable connection. It features a 3.00mm pitch, a single row configuration with 5 circuits, and incorporates a PCB press-fit metal retention clip for secure mounting. The header is constructed with a brass material for the metal components, a gold plating on the mating interface, and a tin plating on the termination interface. It is manufactured from a high-temperature thermoplastic resin and is glow-wire capable, meeting specific flammability standards. This component is ideal for applications requiring a durable and high-performance connection in various electronic devices.
MOLEX 436500519 Micro-Fit 3.0 Header Specifications:
- Product Family: PCB Headers
- Series: 43650
- Application: Power, Wire-to-Board
- Circuits (Loaded): 5
- Circuits (maximum): 5
- Color - Resin: Black
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 17.27mm
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 0.966/g
- Number of Rows: 1
- Orientation: Vertical
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 0.381µm
- Plating min - Termination: 2.540µm
- Polarized to PCB: Yes
- Shrouded: Fully
- Stackable: No
- Surface Mount Compatible: Yes
- Temperature Range - Operating: -40° to +105°C
- Termination Interface: Style: Through Hole - Kinked Pin
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Lead-freeProcess Capability: SMC&WAVE
- Max. Cycles at Max. Process Temperature: 003
- Process Temperature max. C: 260
