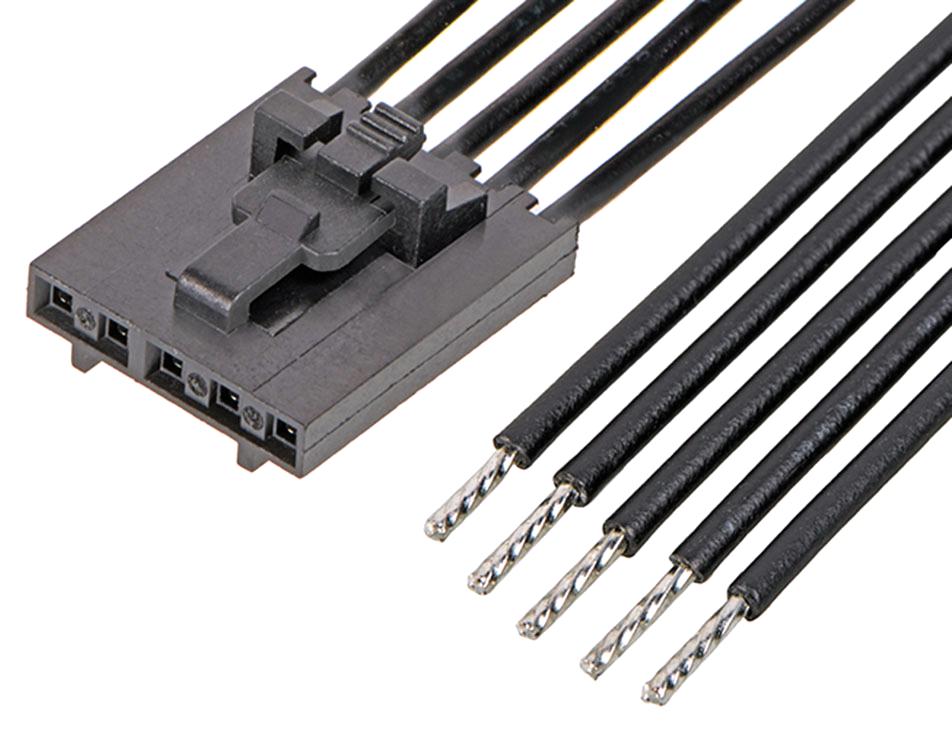

MOLEX 2162711053 Cable Assembly
This versatile off-the-shelf linear stackable cable assembly with positive lock is ideal for prototyping and mass production across industries like automotive, medical, and data. It features multiple termination styles—crimp, FFC, and IDT—to ensure broad compatibility. The connectors have dual contact points for reliable, redundant connections, and a CPA lock secures wire-to-wire and wire-to-board connections, preventing disconnection in high-vibration settings. Constructed from durable polyester alloy housing with tin-plated phosphor bronze contacts, it supports voltages up to 600V, currents up to 3A, and operates between -40°C and +105°C. Rated for 25 mating cycles, it is UL and CSA compliant, with multiple mounting options for flexible applications.
MOLEX 2162711053 Cable Assembly Specifications:
- Cable Length: 300.00mm
- Circuits: 5
- Color: Black
- Gender: Female-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Wire Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- Electrical Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 600V AC/DC
- Temperature Range: -40°C to +105°C
- Rated Mating Cycles: 25
- Standards: UL E29179, CSA LR19980
- Locking Mechanism: Connector Position Assurance (CPA)
- Housing Material: Polyester Alloy
- Contact Material: Phosphor Bronze
- Termination Style: Crimp, FFC, IDT
- Mounting Options: Multiple including PCB mounting
- Connector Type: Discrete wire, connector to connector
- Application: Industrial, automotive, medical, data, telecommunications
Buy the Molex 216271 U–2013 Reliable Cable Assemblies for Industrial Applications
Purchase the Molex 216271 cable assembly today for high-quality, versatile electronic connections. Designed for durability and broad application compatibility, this assembly features multiple termination options including crimp, FFC, and IDT, and supports voltages up to 600V and currents of 3A. Its robust housing made from polyester alloy, with tin-plated phosphor bronze contacts, ensures longevity and reliable performance in temperature ranges from -40°C to +105°C. Rated for 25 mating cycles, it’s ideal for industrial, automotive, and medical sectors. Secure, reliable, easy to install—order now for superior connectivity.
Buy Molex 216271 now and experience unmatched reliability and performance in high-vibration industrial environments.
