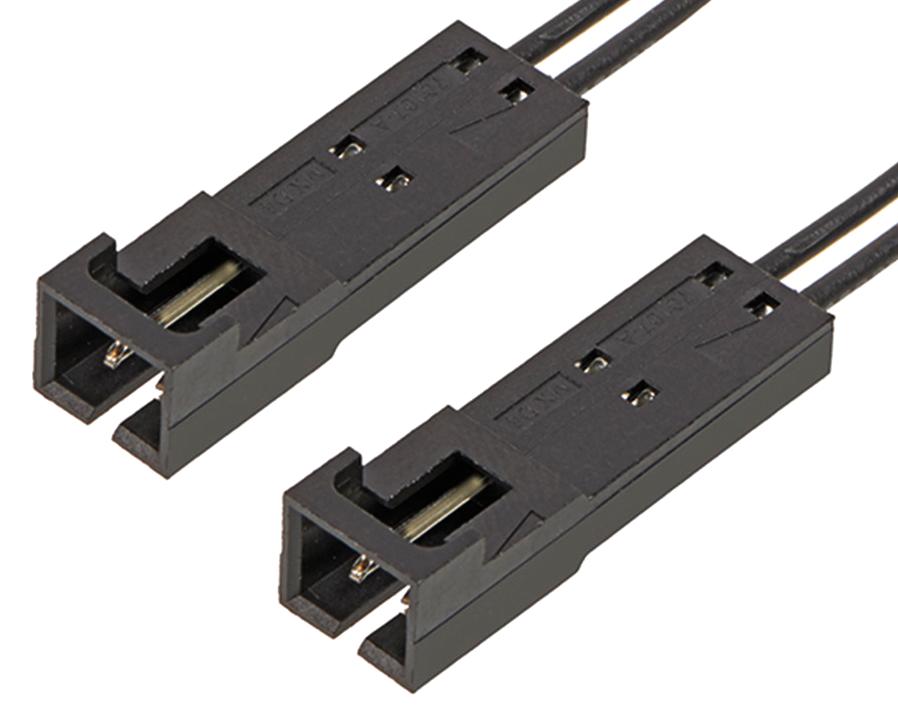

MOLEX 2162721020 Discrete Cable Assembly
This off-the-shelf slide lock discrete cable assembly is designed for versatile, reliable electrical connections in consumer, industrial, automotive, and telecommunications applications. Featuring a positive lock, it ensures secure, vibration-resistant attachment between connectors. The assembly supports various termination styles including crimp, FFC, and IDT, with dual contact points for redundancy and increased durability. Made with polyester alloy housing, phosphor bronze contacts with tin plating, and rated for up to 600V and 3A, this compact, stackable design operates from -40°C to +105°C, supporting up to 25 mating cycles for long-term performance.
MOLEX 2162721020 Discrete Cable Assembly Specifications:
- Cable Length: 50.00mm
- Circuits: 2
- Color - Resin: Black
- Gender: Male-Male
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Maximum Voltage: 600V AC/DC
- Maximum Current per Contact: 3A
- Contact Style: Crimp or Compression
- Wire Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- Operating Temperature: -40°C to +105°C
- Number of Mating Cycles: Up to 25
- Lock: Connector position assurance (CPA) lock
- Housing: Low-profile, stackable design
- Application: Consumer, industrial, automotive, data, telecom
- Certification: UL (E29179), CSA (LR19980)
- RoHS: Compliant, Halogen-Free not Low-Halogen
Buy the Buy Molex 2162721020 Part Number 2162721020 Online
Order the Molex discrete cable assembly today for dependable, secure electrical connections across automotive, industrial, and telecom sectors. Featuring positive lock design, dual contacts for redundancy, and compliant with UL and CSA standards, it supports up to 600V and 3A. The assembly's compact, stackable housing and various termination options ensure compatibility with diverse applications. Operating reliably between -40°C to +105°C, it withstands up to 25 mating cycles, making it an ideal choice for long-term, high-vibration environments. Purchase online now for fast delivery and technical support.
Get Molex 2162721020 today—built for secure, high-vibration environments with reliable power and signal connections.
Frequently Asked Questions
Where can I buy MOLEX 2162721020?
You can click on the BUY or RFQ button to purchase 2162721020 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162721020?
You can download the 2162721020 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162721020?
MOLEX
