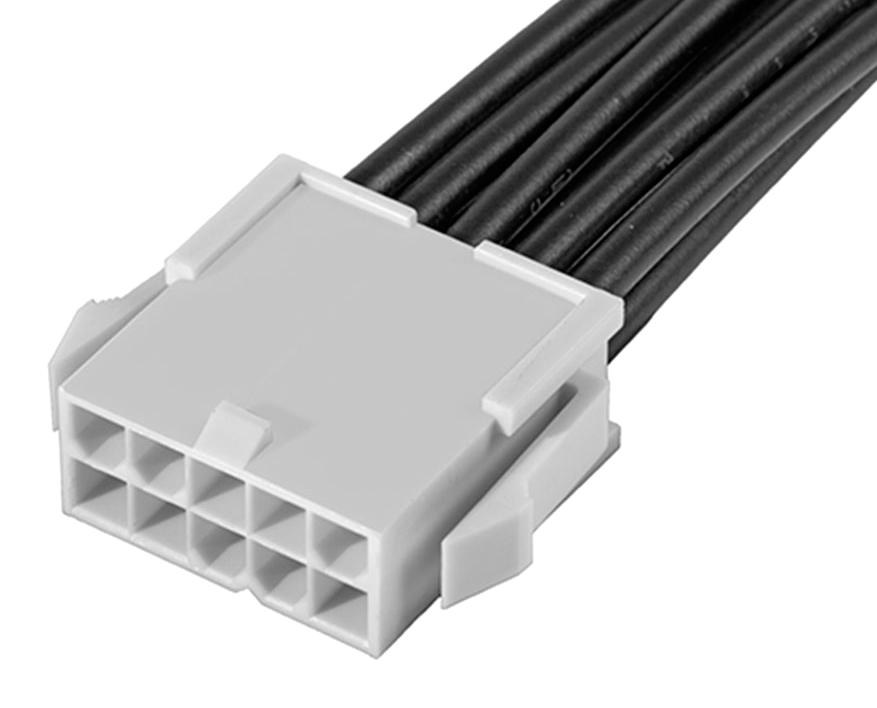

MOLEX 2153261101 Mini-Fit Jr. Cable Assembly
The MOLEX 215326-1101 is a Mini-Fit Jr. female-to-pigtail off-the-shelf (OTS) cable assembly designed for robust power connections in various industrial applications. With a 150mm length, 10 circuits, and tin plating, this assembly provides a reliable and secure connection between wires and boards. The dual-row design and black nylon resin construction ensure durability and ease of integration into existing systems. It is ideal for power distribution, wire management, and connecting devices in automotive, industrial automation, and consumer electronics applications.
MOLEX 2153261101 Mini-Fit Jr. Cable Assembly Specifications:
- Product Family: Cable Assemblies
- Series: 215326
- Application: Power, Wire-to-Board, Wire-to-Wire Assembly
- Configuration: Single Ended
- Connector: Mini-Fit Jr.-to-Pigtail
- Cable Length: 150.00mm
- Circuits (Loaded): 10
- Color: Black
- Gender: Female-Pigtail
- Lock to Mating Part: Yes
- Material - Metal: Brass
- Material - Plating (Mating): Tin
- Material - Plating (Termination): Tin
- Material - Resin: Nylon
- Net Weight: 39.151/g
- Number of Rows: 2
- Pitch - Mating Interface: 4.20mm
- Plating min - Mating: 0.889µm
- Plating min - Termination: 0.889µm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.80-3.10mm
- Wire Size AWG: 16
- Wire/Cable Type: UL 1015
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
- Mates With: ['5559', '5566', '5566', '5569', '5569', '43810', '44068', '44281', '87427', '42404', '42440']
Buy the 215326-1101 MOLEX Mini-Fit Jr. Cable Assembly | myMectronic
Purchase the MOLEX 215326-1101 Mini-Fit Jr. Cable Assembly securely and reliably through myMectronic.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2153261101?
You can click on the BUY or RFQ button to purchase 2153261101 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153261101?
You can download the 2153261101 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153261101?
MOLEX
