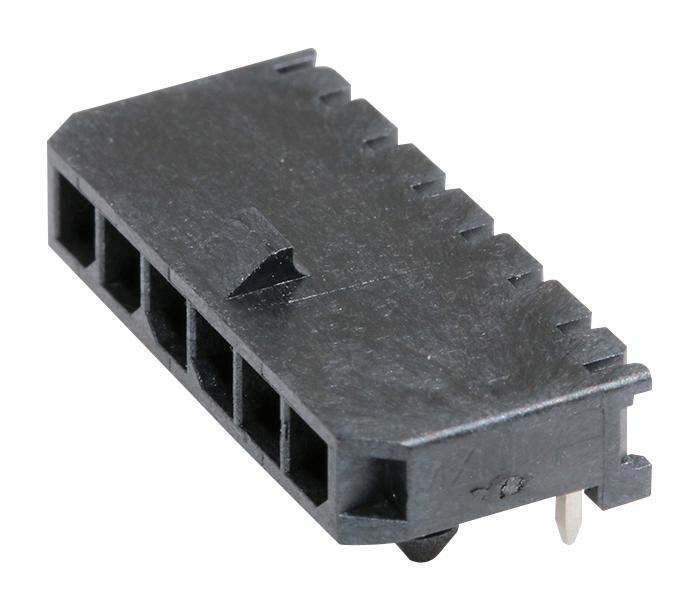

MOLEX 436500601 Micro-Fit 3.0 Header
The MOLEX 43650-0601 is a Micro-Fit 3.0 right-angle header, part of the 43650 product family. This header is designed for secure and reliable wire-to-board connections in various applications. It offers 6 circuits, a 3.00mm pitch, and a right-angle orientation for space-saving designs. The header is glow-wire capable, meeting stringent safety standards for household and similar electrical appliances. It is RoHS compliant and features a tin-plated termination and gold-plated mating interface for excellent conductivity and durability.
MOLEX 436500601 Micro-Fit 3.0 Header Specifications:
- product_family: Micro-Fit 3.0 Connector System
- description: Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 6 Circuits, with Snap-in Plastic Peg PCB Lock
- application: Power, Wire-to-Board
- comments: High Temperature, Square Pin, Solder Type
- glow_wire_ignition_temperature: 775 deg C
- glow_wire_flammability_index: 850 deg C
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- mates_with: Micro-Fit 3.0 Receptacle Housing, Micro-Fit 3.0 TPA Receptacle Housing
- circuits_loaded: 6
- circuits_maximum: 6
- color_resin: Black
- durability_mating_cycles: 30
- flammability: 94V-0
- glow_wire_capable: Yes
- mated_height: 6.98mm
- material_metal: Brass
- material_plating_mating: Gold
- material_plating_termination: Tin
- material_resin: High Temperature Thermoplastic
- net_weight: 1.140/g
- number_of_rows: 1
- orientation: Right Angle
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended: 1.60mm
- packaging_type: Tray
- pitch_mating_interface: 3.00mm
- plating_min_mating: 0.381µm
- plating_min_termination: 2.540µm
- polarized_to_pcb: Yes
- shrouded: Fully
- stackable: No
- smc_compatible: Yes
- operating_temperature_range: -40° to +105°C
- termination_interface_style: Through Hole
- current_max_per_contact: 8.5A
- voltage_max: 600V
- max_process_temperature_seconds: 030
- max_cycles_at_max_process_temperature: 003
- max_process_temperature_celsius: 260
