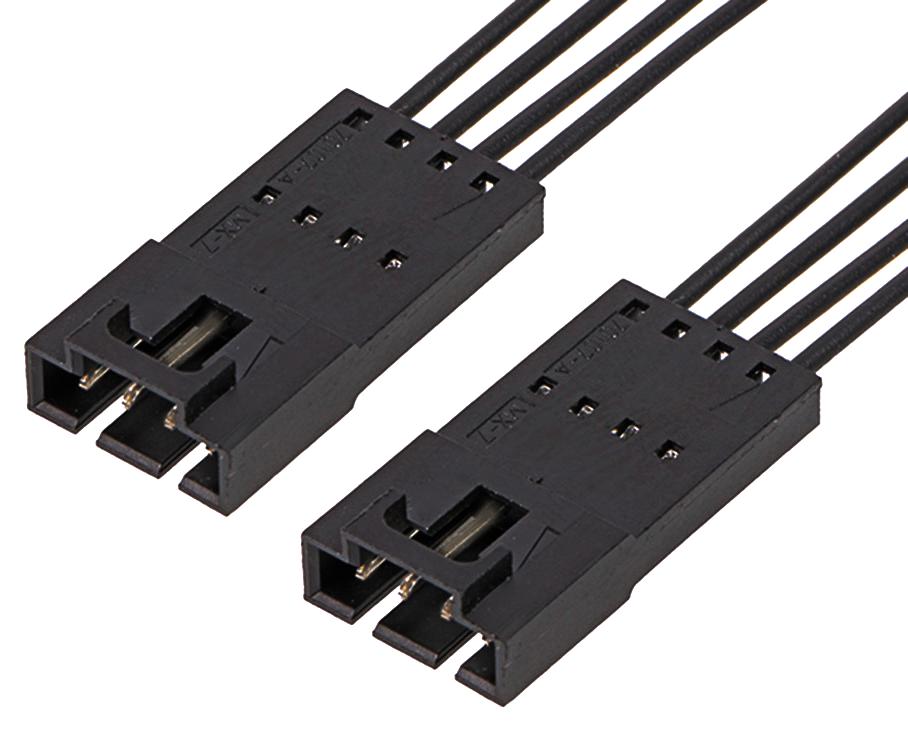

MOLEX 2162721044 Stackable Cable Assembly
This off-the-shelf stackable linear positive lock discrete cable assembly supports prototyping and mass production in various applications. It features crimp, FFC, and IDT terminations, with two independent contact points for redundancy and reliable electrical performance. The connector has a male-to-male configuration with options for low-profile, stackable housing, vertical, and right-angle headers. A connector position assurance lock secures wire-to-wire interfaces, preventing disengagement in high-vibration environments. Suitable for consumer, industrial, automotive, and medical use, it handles 600V AC/DC, 3A, operates from -40°C to +105°C, and endures up to 25 mating cycles.
MOLEX 2162721044 Stackable Cable Assembly Specifications:
- Connector Type: SL Male-to-Male
- Cable Length: 600.00mm
- Number of Circuits: 4
- Color: Black
- Housing Material: Polyester Alloy
- Contact Material: Phosphor Bronze
- Contact Plating: Tin
- Voltage Rating: 600V AC/DC
- Current Rating: 3A per contact
- Temperature Range: -40°C to +105°C
- Durability: Up to 25 mating cycles
- Termination: Crimp, FFC, IDT
- Locking Mechanism: Positive Lock with CPA
- Application: Consumer, industrial, automotive, medical
- Compliance: UL and CSA approved
- Housing Features: Low-profile, stackable, vertical, right-angle options
- Standards: UL E29179, CSA LR19980
Buy the Buy Molex Cable Assembly Part Number 2162721044 Online
Purchase the Molex stackable cable assembly online for reliable wiring solutions across industrial, automotive, and medical fields. Featuring positive lock connectors and multiple termination options, it provides high durability and secure engagement even in high-vibration environments. Capable of handling up to 600V and 3A, with a quick-mating design rated for 25 cycles, it ensures long-lasting performance. Ideal for prototypes or mass production, this versatile assembly offers excellent flexibility with low-profile, stackable, vertical, and right-angle housing options, meeting UL and CSA standards for safety and quality.
Get Molex 2162721044 today—designed for secure, reliable connections in demanding environments with high vibration resistance.
Frequently Asked Questions
Where can I buy MOLEX 2162721044?
You can click on the BUY or RFQ button to purchase 2162721044 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162721044?
You can download the 2162721044 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162721044?
MOLEX
