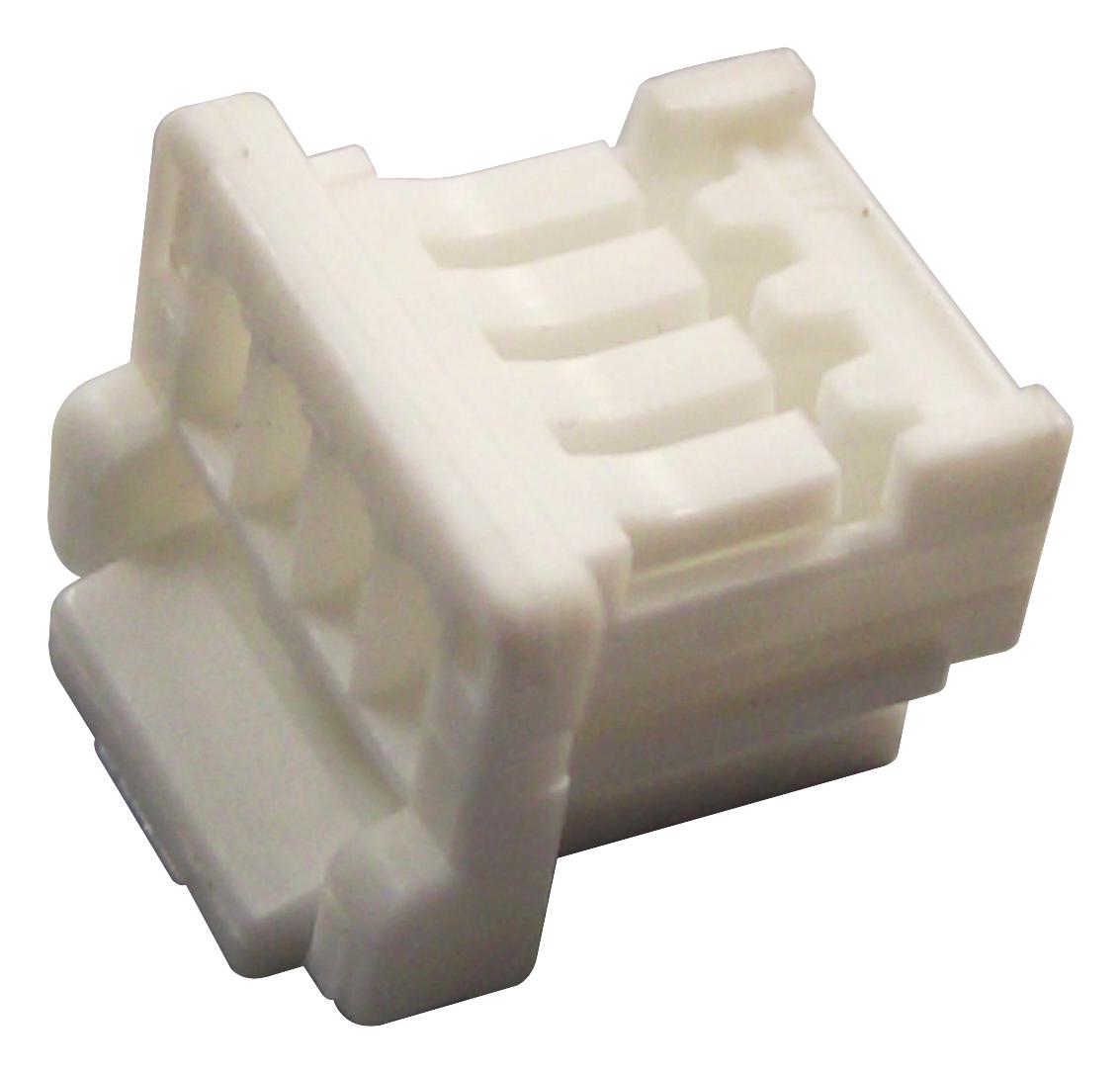

MOLEX 5019390500 Pico-Clasp Wire-to-Board Housing
The MOLEX 501939-0500 Pico-Clasp Wire-to-Board Housing is a compact and reliable solution for connecting wires to printed circuit boards. Designed with a 1.00mm pitch, this housing offers a positive lock feature for secure mating. It supports up to 5 circuits and is suitable for signal applications in various industrial and consumer electronics. The housing is constructed from Nylon resin and operates within a temperature range of -40°C to +105°C, ensuring durability and performance in diverse environments. It is RoHS compliant and features a low-halogen content, aligning with environmental standards.
MOLEX 5019390500 Pico-Clasp Wire-to-Board Housing Specifications:
- overview: Pico-Clasp Wire-to-Board Connectors
- pitch_mating_interface: 1.00mm
- circuits_maximum: 5
- color_resin: White
- gender: Receptacle
- lock_to_mating_part: Yes
- material_resin: Nylon
- number_of_rows: 1
- packaging_type: Bag
- panel_mount: No
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating: -40° to +105°C
- current_maximum_per_contact: 1.0A
- halogen_free_status: Low-Halogen
- upc: 822350286961
- net_weight: 61.100/mg
Buy the 501939-0500 MOLEX Pico-Clasp Wire-to-Board Housing | myMectronic
Purchase the MOLEX 501939-0500 Pico-Clasp Wire-to-Board Housing securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 5019390500?
You can click on the BUY or RFQ button to purchase 5019390500 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5019390500?
You can download the 5019390500 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5019390500?
MOLEX
