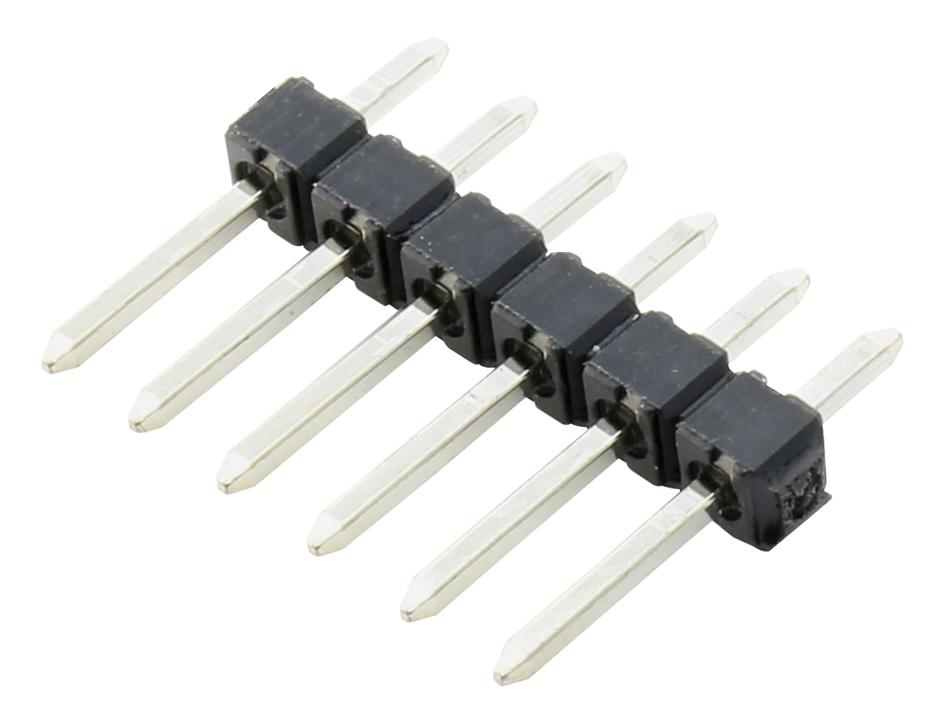

MOLEX 22285023 KK 254 Breakaway Header
The MOLEX 22-28-5023 KK 254 Breakaway Header is a versatile interconnect solution suitable for a range of applications including board-to-board and wire-to-board connections. It offers a vertical orientation and is designed with 2 circuits, providing a compact and efficient connection. The header utilizes gold selective plating on the mating interface and tin plating on the termination interface, ensuring excellent signal integrity and solderability. Its breakaway design simplifies assembly and allows for easy disconnection when needed. This header is a part of the 42375 series and is compatible with various Molex housings and connectors, making it a flexible choice for diverse electronic designs.
MOLEX 22285023 KK 254 Breakaway Header Specifications:
- Product Family: PCB Headers
- Series: 42375
- Application: Board-to-Board, Signal, Wire-to-Board
- Overview: KK® Interconnect System - Molex
- Circuits (Loaded): 2
- Circuits (maximum): 2
- Color - Resin: Black
- Durability (mating cycles max): 100
- First Mate / Last Break: No
- Flammability: 94V-0
- Glow-Wire Capable: No
- Guide to Mating Part: None
- Lock to Mating Part: None
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 0.135/g
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 3.43mm
- PCB Locator: No
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Plating min - Mating: 0.381µm
- Plating min - Termination: 2.540µm
- Polarized to Mating Part: No
- Polarized to PCB: No
- Shrouded: No
- Stackable: No
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: See Product Specification
- Current - Maximum per Contact: 4.0A
- Voltage - Maximum: 500V
- Lead-freeProcess Capability: WAVE
- Max. Cycles at Max. Process Temperature: 001
- Process Temperature max. C: 260
- Engineering Number: 42375-0352
- Packaging Specification: PK-40873-0041-001
- Product Specification: PS-10-07-001
- Sales Drawing: SD-42375-001
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained Per -ED/88/2018 (15 January 2019)
- Halogen-Free Status: Not Low-Halogen
- UPC: 800753644762
