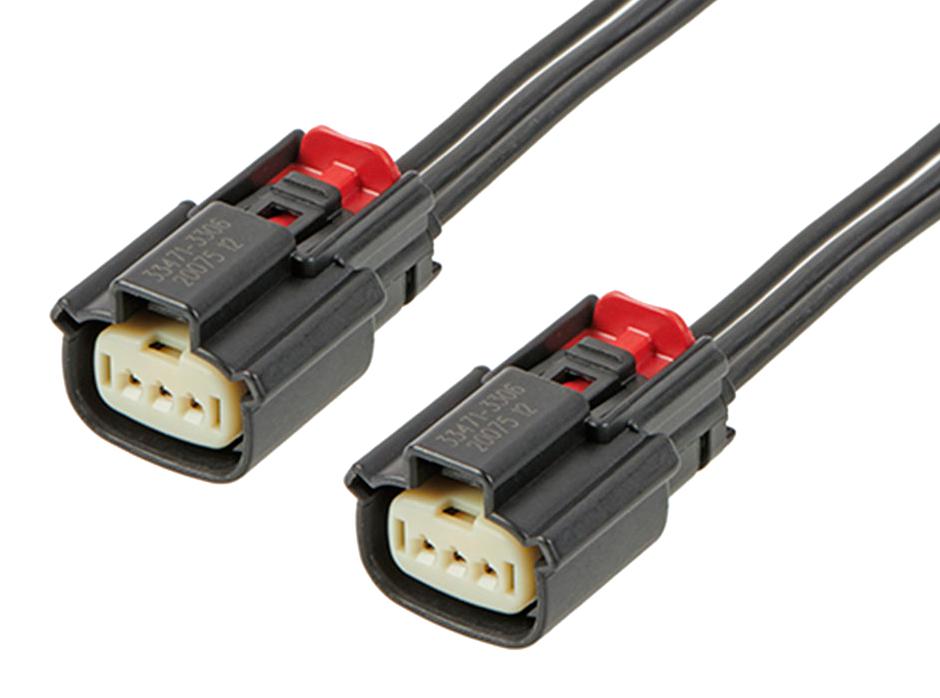

MOLEX 2162801033 MX150 Cable Assembly
The MOLEX 216280-1033 is a robust MX150 Female-to-Female Off-the-Shelf (OTS) Cable Assembly, ideal for power transmission and wire interconnection in various industrial settings. It boasts a 600.00mm length, tin plating for reliable connections, and a single row configuration with 3 circuits. Constructed with a high-performance alloy and SPS/Nylon resin, this assembly ensures durability and efficient signal transfer. It is designed to mate with MX150 Sealed Single Row Male Connectors.
MOLEX 2162801033 MX150 Cable Assembly Specifications:
- overview: Off-the-Shelf Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire
- configuration: Dual Ended
- connectors: MX150-to-MX150
- cable_length: 600.00mm
- circuits_loaded: 3
- color_resin: Black
- material_metal: High Performance Alloy (HPA)
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin (Sn)
- material_resin: SPS/Nylon
- net_weight: 587.900/g
- number_of_rows: 1
- pitch_mating_interface: 3.50mm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 2.70mm
- wire_size_awg: 14
- wire_cable_type: TXL Stranded
- current_max_per_contact: 22.0A
- voltage_max: 14V DC
- upc: 193264714346
- halogen_free_status: Low-Halogen
- reach_svhc: Not Contained
- elv: Not Relevant
- rohs: Compliant
- phthalates: Not Contained
