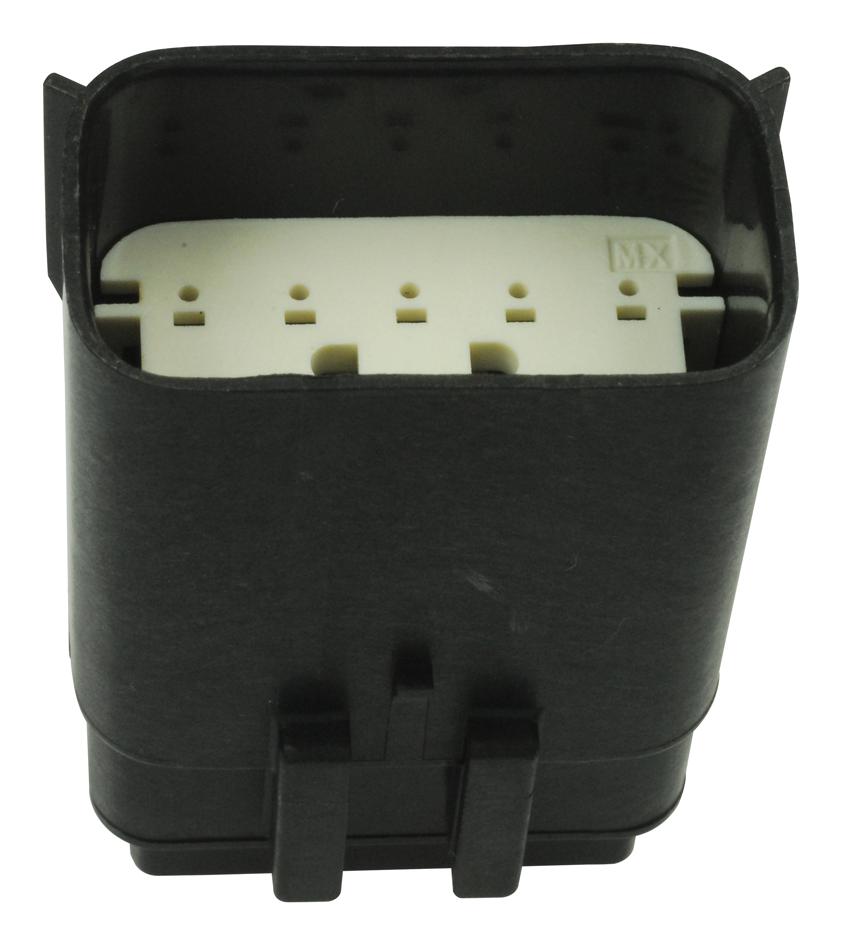

MOLEX 194190002 MX150L Industrial Connector
The MOLEX 19419-0002 is a robust industrial sealed connector from the MX150L series. Designed for power and wire-to-wire connections, it accommodates 14-16 AWG wire and offers IP67-rated protection against dust and water ingress. It is UL compliant and features a lock to mating part for secure connections. However, it's important to note that this connector is not intended for automotive applications requiring USCAR, GMW3191, or similar specifications. It's a reliable choice for industrial environments demanding durable and sealed connectivity.
MOLEX 194190002 MX150L Industrial Connector Specifications:
- circuits_maximum: 8
- flammability: 94V-0
- gender: Plug
- glow_wire_capable: No
- lock_to_mating_part: Yes
- net_weight_g: 18.508
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 5.84mm
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +125°
- current_maximum_per_contact_a: 18.0
- eu_elv: Not Relevant
- eu_rohs: Compliant
- reach_svhc: Not Contained Per -ED/88/2018 (15 January 2019)
- halogen_free_status: Low-Halogen
- rohs_phalates: Not Contained
- mates_with: 19418 Receptacle Assemblies
- use_with: 19417 Male Crimp Terminals
Buy the 19419-0002 MOLEX MX150L Industrial Connector | myMectronic
Purchase the MOLEX 19419-0002 securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 194190002?
You can click on the BUY or RFQ button to purchase 194190002 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 194190002?
You can download the 194190002 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 194190002?
MOLEX
