MOLEX 2002772102 Nano-Fit Power Connectors
Nano-Fit Power Connectors offer a compact, fully isolated, and highly reliable connection solution suitable for various applications including consumer appliances, automotive, aerospace, industrial, and healthcare. Featuring 2.50mm pitch, multiple keying options, color coding for quick assembly, and a positive-lock housing with anti-snag design, these connectors ensure secure mating and long-term performance. They support high current, low mate force, and enable space-saving multi-layer PCB designs, improving signal integrity and making assembly faster and more efficient.
MOLEX 2002772102 Nano-Fit Power Connectors Specifications:
- Voltage (Max): 250V
- Current (Max): 6.54A
- Contact Resistance: 10 milliohms
- Dielectric Withstanding Voltage: 1500V
- Insulation Resistance: 1000 Megohms
- Contact Insertion Force: 2.5N
- Contact Retention to Housing: 27N
- Insertion Force to PCB: Not specified
- Mating Force: 3N
- Unmating Force: 3N
- Durability: 20 cycles (tin), 50 cycles (gold)
- Housing Material: Nylon UL 94V-0 (receptacle), LCP UL 94V-0 (header)
- Contact Material: High-Conductivity Copper
- Plating: Tin or 381) Gold (15), 762) Gold (30p) for contact areas, Tin for solder tails, Nickel underplating
- PCB Thickness: 1.60 to 2.40mm
- Operating Temperature: -40 to +105°C (tin), -40 to +115°C (gold)

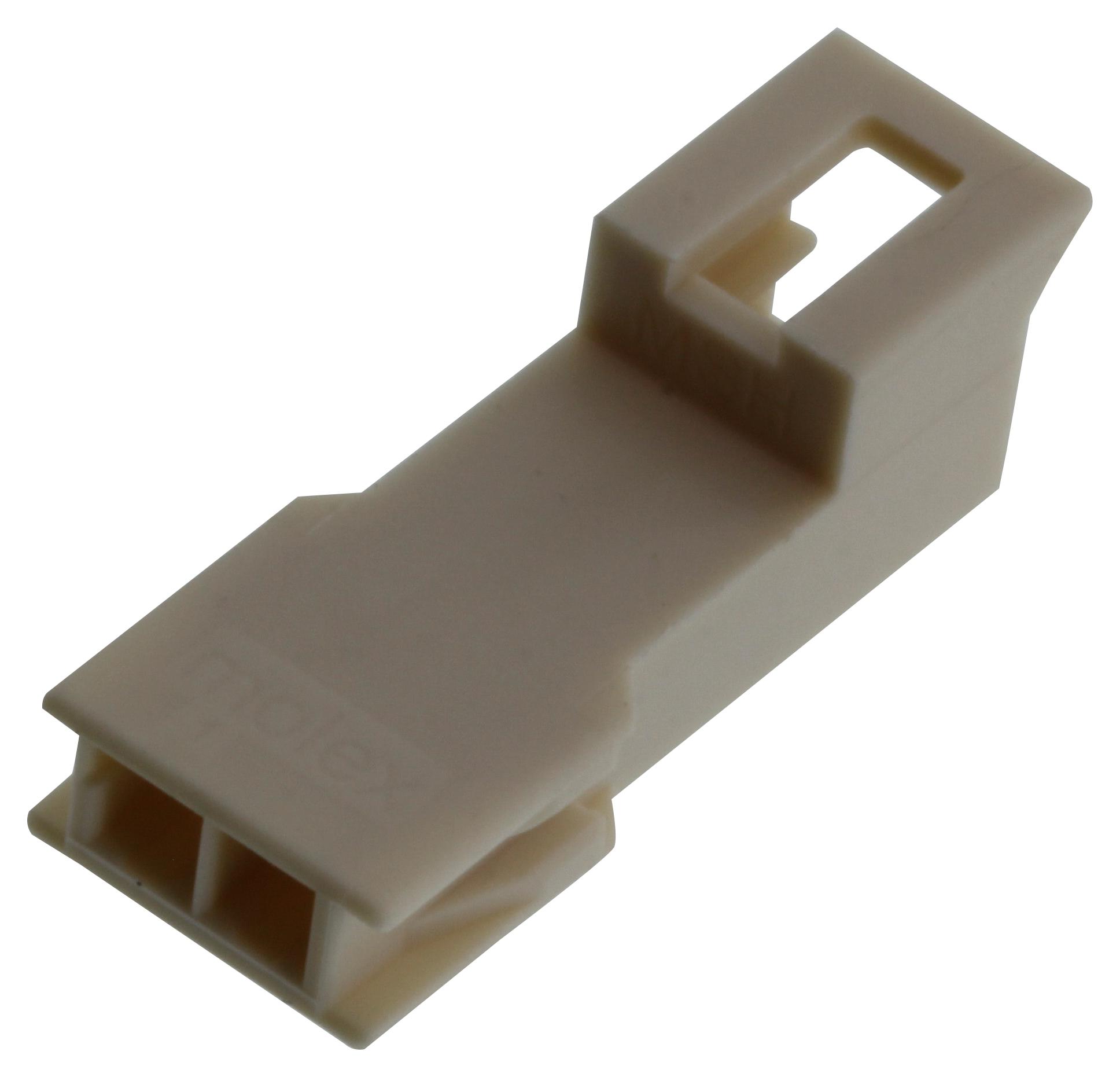

Buy the Buy Molex Nano-Fit Power Connectors Part Number 2002772102 Online
Secure your electronic projects with Molex Nano-Fit Power Connectors. Featuring a 2.50mm pitch, multiple keying options, high current capacity, and space-saving design, these connectors are ideal for consumer, industrial, automotive, aerospace, and healthcare applications. Easy to assemble with color coding and audible click, they ensure proper mating and long-term reliability. Protect terminals during handling, support multi-layer PCB designs, and improve signal integrity for a wide range of electronic devices. Order online today for fast delivery and quality assurance!
Buy Molex Nano-Fit Power Connectors now and experience unmatched reliability and space-saving power solutions for your electronic applications.
Frequently Asked Questions
Where can I buy MOLEX 2002772102?
You can click on the BUY or RFQ button to purchase 2002772102 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2002772102?
You can download the 2002772102 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2002772102?
MOLEX
