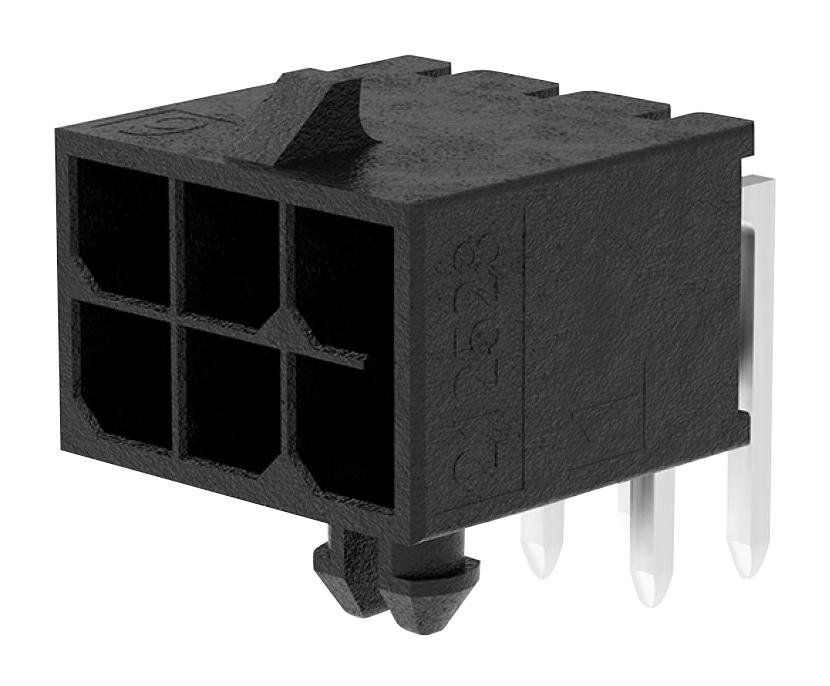

MOLEX 2125280600 Micro-Fit+ Connector
The MOLEX 212528-0600 is a Micro-Fit+ right-angle header, ideal for wire-to-board applications in power delivery systems. It boasts a 3.00mm pitch, 6 circuits, and a robust design capable of withstanding 25 mating cycles. Constructed with a high copper alloy and matte tin plating, this connector ensures excellent conductivity and corrosion resistance. Its right-angle orientation simplifies PCB layout and reduces strain on connections, making it suitable for a wide range of industrial and consumer electronics applications. The connector is also glow-wire capable and polarized to the mating part for secure assembly.
MOLEX 2125280600 Micro-Fit+ Connector Specifications:
- product_family: Micro-Fit+ Connector System
- application: Power, Wire-to-Board
- circuits_max: 6
- color_resin: Black
- mating_cycles_max: 25
- glow_wire_capable: Yes
- keying: Yes
- lock_to_mating_part: Yes
- material_metal: High Copper Alloy
- material_plating: Matte Tin
- material_resin: Liquid Crystal Polymer
- net_weight_g: 0.950
- number_of_rows: 2
- orientation: Right Angle
- pcb_tail_length_mm: 3.18
- pcb_thickness_recommended_mm: 1.57
- packaging_type: Tray
- pitch_mating_interface_mm: 3.00
- pitch_termination_interface_mm: 3.00
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: No
- smc_compatible: No
- operating_temperature_range_c: -40 to +105
- termination_interface_style: Through Hole
- current_max_per_contact_a: 12.5
- voltage_max_ac_rms_dc_v: 600
- upc: 193264254989
