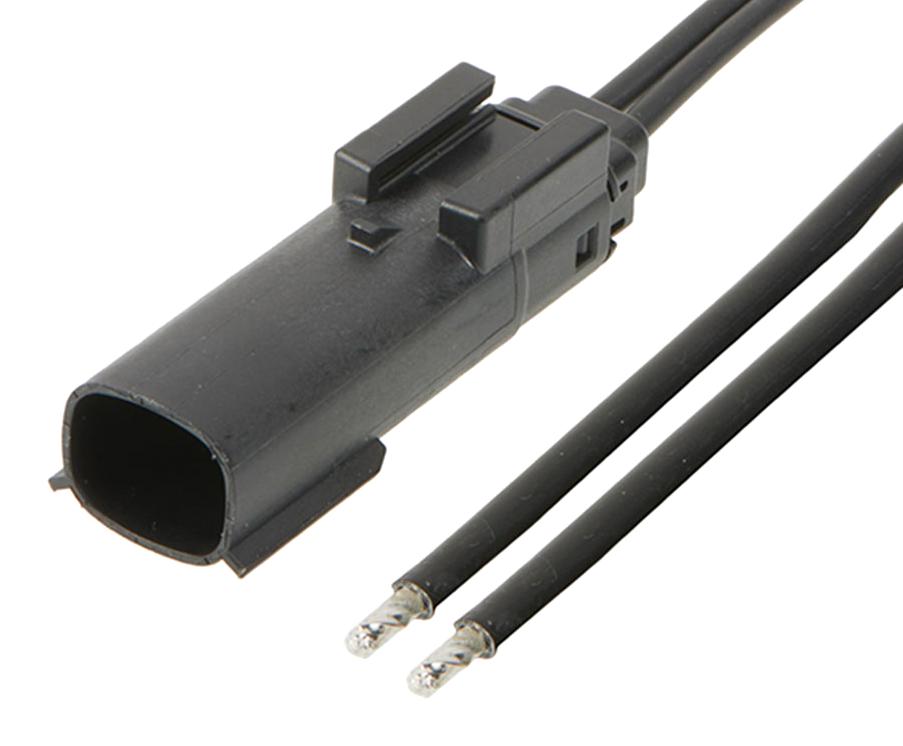

MOLEX 2162831022 MX150 Cable Assembly
The MOLEX 216283-1022 is a robust MX150 male-to-pigtail cable assembly designed for reliable power transmission and connectivity in various industrial applications. This off-the-shelf cable assembly boasts a 300mm length, tin plating for enhanced conductivity, and a black SPS/Nylon resin for durability. It supports up to 22.0A of current and 14V DC voltage, making it suitable for demanding wire-to-board and wire-to-wire connections. The assembly is RoHS compliant and features a high-performance alloy material for optimal performance.
MOLEX 2162831022 MX150 Cable Assembly Specifications:
- product_family: Cable Assemblies
- series: 216283
- application: Power, Wire-to-Board, Wire-to-Wire
- configuration: Single Ended
- connector_type: MX150-to-Pigtail
- cable_length: 300.00mm
- circuits_loaded: 2
- color_resin: Black
- material_metal: High Performance Alloy (HPA)
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: SPS/Nylon
- net_weight: 200.000/g
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 3.50mm
- wire_insulation_diameter: 2.70mm
- wire_size_awg: 14
- wire_cable_type: TXL Stranded
- current_max_per_contact: 22.0A
- voltage_max: 14V DC
- upc: 193264714483
- halogen_free_status: Low-Halogen
