MOLEX 2162861062 MX150 Cable Assembly

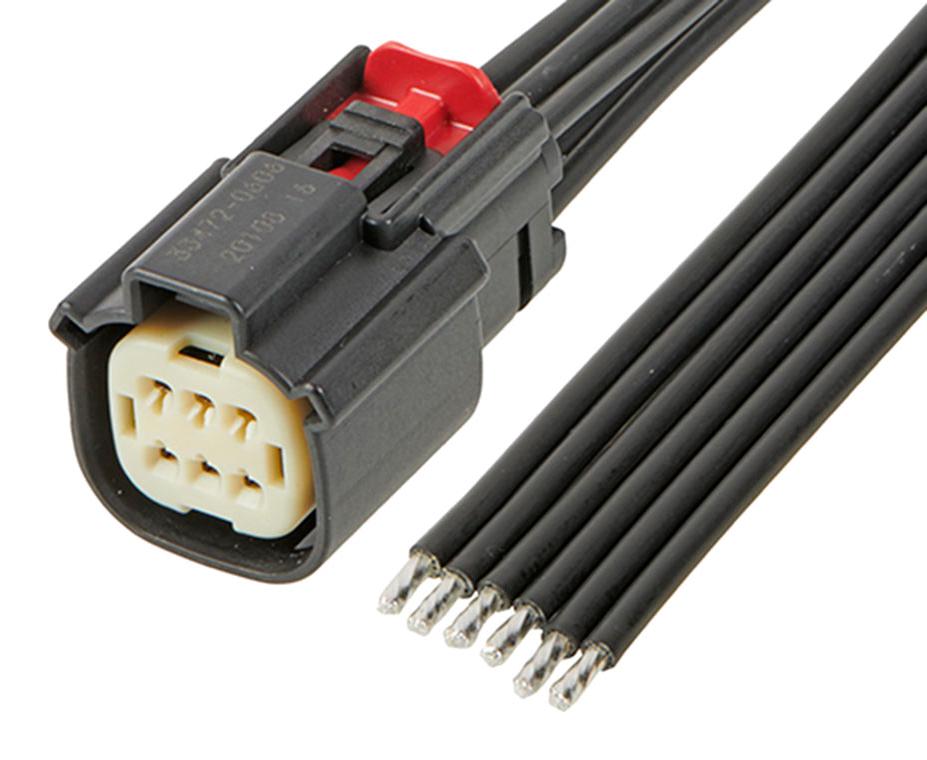

The MOLEX 216286-1062 is a versatile MX150 Female-to-Pigtail Off-the-Shelf (OTS) Cable Assembly designed for a variety of industrial applications including power transmission, wire-to-board connections, and wire-to-wire assemblies. It boasts a robust construction with a high-performance alloy (HPA) metal material, tin plating for both mating and termination interfaces, and a durable SPS/Nylon resin. The assembly supports up to 22.0A of current at 14V DC and is RoHS compliant, making it suitable for demanding environments.
MOLEX 2162861062 MX150 Cable Assembly Specifications:
- overview: Off-the-Shelf Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Single Ended
- connector_type: MX150-to-Pigtail
- cable_length: 300.00mm
- circuits_loaded: 6
- color_resin: Black
- material_metal: High Performance Alloy (HPA)
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- material_resin: SPS/Nylon
- net_weight: 590.900/g
- number_of_rows: 2
- packaging_type: Bag
- pitch_mating_interface: 3.50mm
- wire_insulation_diameter: 2.70mm max.
- wire_size_awg: 14
- wire_cable_type: TXL Stranded
- current_max_per_contact: 22.0A
- voltage_max: 14V DC
- upc: 193264714636
