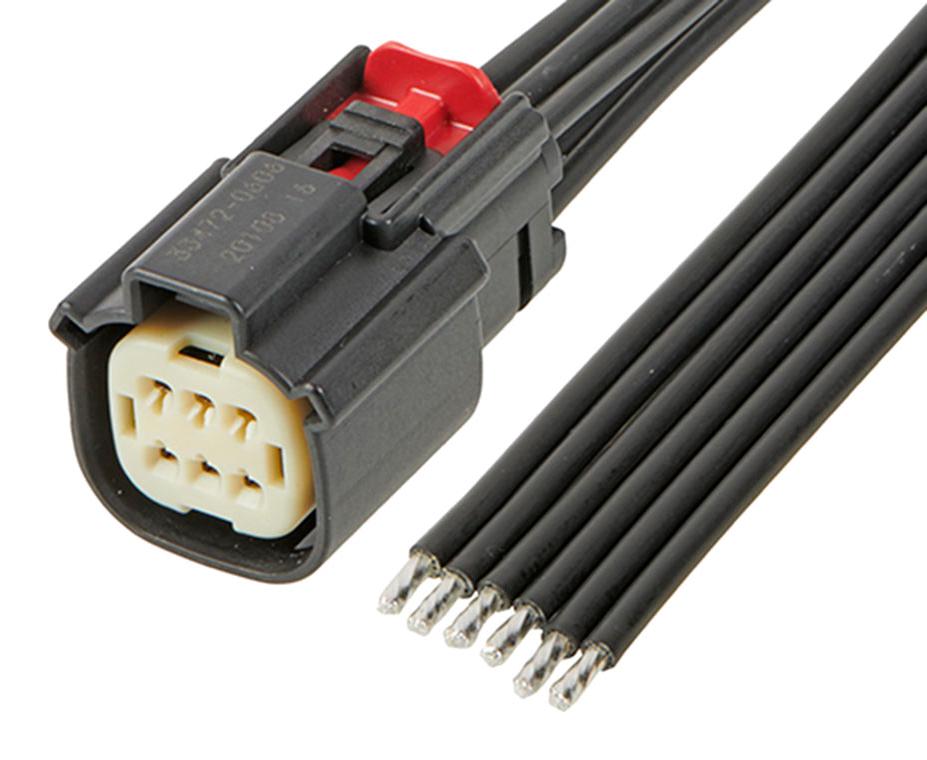

MOLEX 2162861063 MX150 Cable Assembly
The MOLEX 216286-1063 is a robust MX150 Female-to-Pigtail Off-the-Shelf (OTS) Cable Assembly, ideal for power transmission and connectivity in various wire-to-board and wire-to-wire applications. It boasts a 600.00mm length, tin plating for reliable signal transfer, and a dual-row design with 6 circuits. Constructed with a high-performance alloy and SPS/Nylon resin, this assembly offers durability and secure connections, making it suitable for demanding industrial environments. It is RoHS compliant and features a low-halogen status.
MOLEX 2162861063 MX150 Cable Assembly Specifications:
- overview: Off-the-Shelf Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Single Ended
- connector_type: MX150-to-Pigtail
- cable_length: 600.00mm
- circuits_loaded: 6
- color_resin: Black
- material_metal: High Performance Alloy (HPA)
- plating_mating: Tin
- plating_termination: Tin
- material_resin: SPS/Nylon
- net_weight: 1133.500/g
- number_of_rows: 2
- packaging_type: Bag
- pitch_mating_interface: 3.50mm
- wire_insulation_diameter: 2.70mm max.
- wire_size_awg: 14
- wire_cable_type: TXL Stranded
- current_max_per_contact: 22.0A
- voltage_max: 14V DC
- upc: 193264714643
- material_info: Reference - Drawing Numbers: Packaging Specification 2162801021-001, Sales Drawing 2162861061-000
