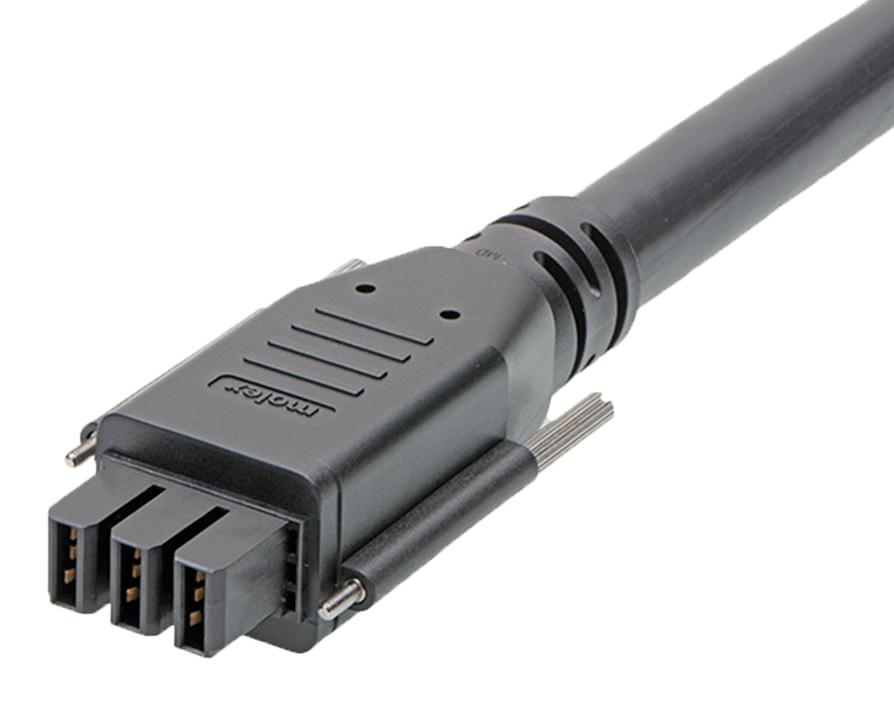

MOLEX 2167592035 Power Cable Assembly
The 216759 series EXTreme Guardian-to-pigtail overmoulded cable assembly is designed for demanding aerospace, defense, power supplies, data communication, electric vehicles, medical, solar, and telecom applications. It features secure locking screws, locking tang-on terminals, polarized geometry, and supports up to 50A at 600V. Constructed with PBT housing and copper alloy contacts with gold plating, it operates from -40°C to +105°C. Rated for 25 mating cycles, it ensures reliable, high-performance connections in critical environments, maintaining low contact resistance and dielectric withstand voltage.
MOLEX 2167592035 Power Cable Assembly Specifications:
- Cable Length: 2.0m
- Circuits: 3
- Color: Black
- Connector Gender: Female-Pigtail
- Material - Metal: Copper Alloy
- Material - Plating: Gold
- Material - Resin: Polyester
- Wire Size: AWG 6
- Wire/Cable Type: PVC
- Voltage - Maximum: 600V
- Current - Maximum per Contact: 50.0A
- Temperature Range: -40°C to +105°C
- Locking: Connector-locking screw
- Number of Mating Cycles: 25
- Mating Interface Pitch: 11.00mm
- Housing Material: PBT
- Housing Color: Black
- Contact Resistance: approximately 106 milliohms
- Dielectric Voltage: 1000V DC for 0.01 seconds
- Overmolded Assembly: Yes
Buy the Molex 2167592035 – Reliable Power Cable Assembly for Industrial Applications
Enhance your connectivity with the Molex Power Cable Assembly designed for demanding environments such as aerospace, defense, and industrial automation. Featuring a rugged construction, secure locking mechanisms, and high current capacity up to 50A at 600V, this assembly ensures reliable power transmission. Its compact 11mm pitch and robust materials provide durability, safety, and excellent performance across multiple applications. Easy to install, with a power-rated design that withstands harsh conditions, making it ideal for mission-critical power and communication systems. Purchase online today for dependable, high-quality connectivity solutions.
Get Molex 2167592035 today—built for high reliability in aerospace, defense, and power systems with secure locking and high current capacity.
Frequently Asked Questions
Where can I buy MOLEX 2167592035?
You can click on the BUY or RFQ button to purchase 2167592035 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2167592035?
You can download the 2167592035 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2167592035?
MOLEX
