MOLEX 2174712114 Power Connector

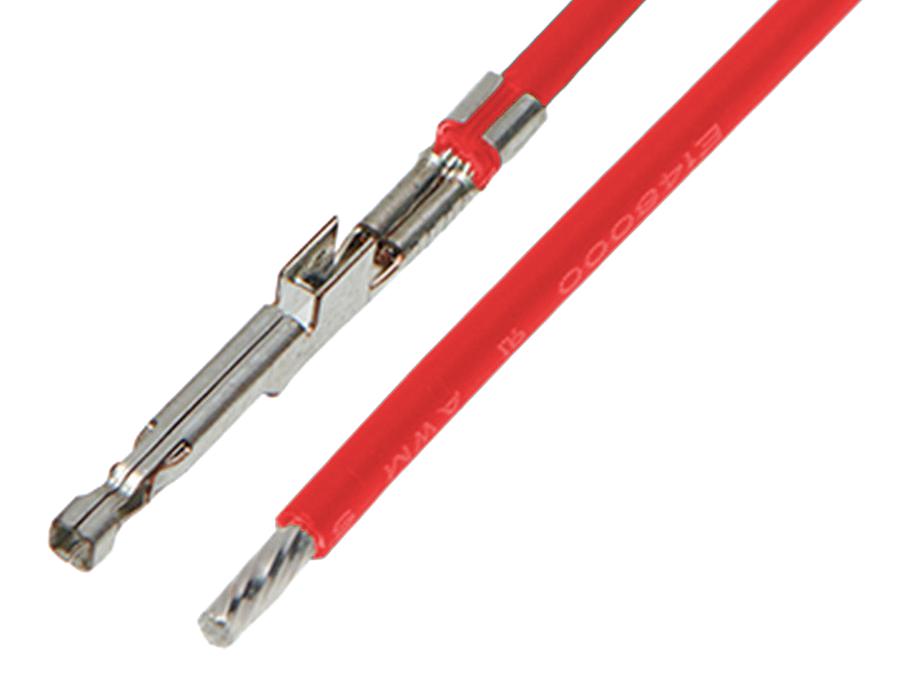

Molex's 217471 series pre-crimped leads offer a reliable, cost-effective solution for prototyping, pre-production, and mass manufacturing. This ultra-fit female-to-pigtail connector features a 300mm red insulated cable, constructed from high-quality high-conductivity copper with tin plating. Rated at 600V AC/DC and capable of handling up to 12A per contact, it uses 18AWG wire conforming to UL 1061 standards. Fully tested and ready for use, these pre-crimped cables simplify assembly, save time, and help ensure accurate mating connections across various Molex connector families.
MOLEX 2174712114 Power Connector Specifications:
- Cable Length: 300.00mm
- Wire Size: 18 AWG
- Maximum Voltage: 600V AC/DC
- Maximum Current: 12A per contact
- Material - Metal: High Conductivity Copper
- Material - Plating: Tin
- Wire Insulation Diameter: 2.03-2.39mm
- Resin Color: Red
- Certification: UL 1061
- Application: Power, wire-to-board, connector to connector
- Assembly Configuration: Female-to-Pigtail
- Packaging: Bag
- Status: Active
- RoHS Compliance: Yes
- Halogen-Free: No
- Operating Temperature Range: Not specified
- Reference Drawing: 2174711111-000
Buy the Molex 2174712114 – Reliable Power Connectors for Industrial Applications
Order the Molex 217471 series pre-crimped female-to-pigtail connector online today to enhance your assembly process. This versatile, fully tested 300mm red insulated cable with 18AWG wire offers a maximum of 600V and 12A current capacity. Its easy-to-use design suits prototyping, pre-production, and mass manufacturing, reducing assembly time and ensuring precise connections. Compatible with multiple Molex connector families, this high-quality crimped lead provides dependable electrical performance, helping you speed up project timelines and improve product reliability across various industrial and electronic applications.
Buy Molex 2174712114 now and experience unmatched reliability and performance in your power and signal connections for industrial applications.
Frequently Asked Questions
Where can I buy MOLEX 2174712114?
You can click on the BUY or RFQ button to purchase 2174712114 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2174712114?
You can download the 2174712114 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2174712114?
MOLEX
