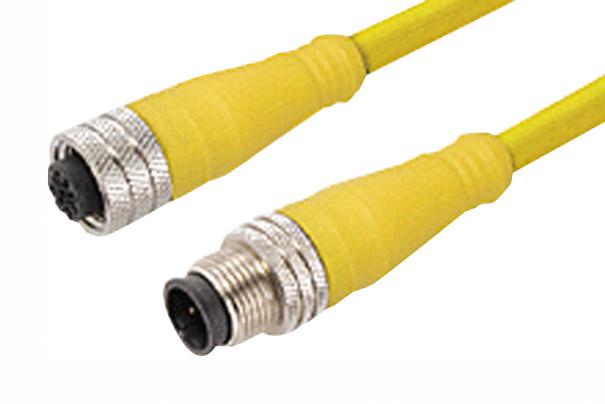

MOLEX 1200660693 Industrial M12 Cordset
This M12 Micro-Change double-ended cordset features 4 poles with female and male connectors, 22 AWG TPE cable, and a 6-meter length. Designed for industrial applications, it offers IP67-rated protection, nickel-plated brass contacts, and a threaded coupling style for secure connections. Operating within -25°C to +80°C, it supports a maximum current of 4.0A and voltage of 250V AC/DC. Compliant with RoHS, REACH SVHC standards, and certified by UL and CSA, ensuring safety and quality in automation and sensor wiring solutions.
MOLEX 1200660693 Industrial M12 Cordset Specifications:
- Connector Type: Micro-Change (M12), double-ended, straight to straight
- Poles: 4
- Gender: Female to Male
- Cable Diameter: 5.30 mm (.209")
- Cable Length: 6.0 m (19.68')
- Cable Material: TPE
- Cable Color: Yellow
- Operating Temperature Range: -25°C to +80°C
- Wire Size AWG: 22
- Electrical Rating: 4.0A, 250V AC/DC
- IP Rating: IP67
- Connector Material: Nickel-plated Brass
- Material - Cable Jacket: TPE
- Coupling Style: Threaded
- Certifications: UL, CSA, EU RoHS, China RoHS, REACH SVHC compliant
- Net Weight: approximate, not provided
- Connector End A and B: Female and Male, straight connectors
- Environmental Compliance: RoHS, REACH, Halogen-Free, Lead-Free
Buy the Molex Series Micro-Change M12: 1200660693
Purchase the Molex Micro-Change M12 double-ended cordset with 4 poles, 6-meter TPE cable, and IP67 protection online today. Designed for industrial automation, sensor wiring, and rugged environments, this connector offers durability, secure threading, and compliance with global safety standards. Its nickel-plated brass contacts ensure reliable electrical connections, while the flexible TPE cable withstands harsh conditions. Order now to enhance your automation projects with a high-quality, easy-to-install M12 cordset, ensuring dependable performance and long-term durability.
Buy Molex 1200660693 now and experience unmatched reliability and performance for industrial sensor connections and automation systems.
Frequently Asked Questions
Where can I buy MOLEX 1200660693?
You can click on the BUY or RFQ button to purchase 1200660693 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1200660693?
You can download the 1200660693 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1200660693?
MOLEX
