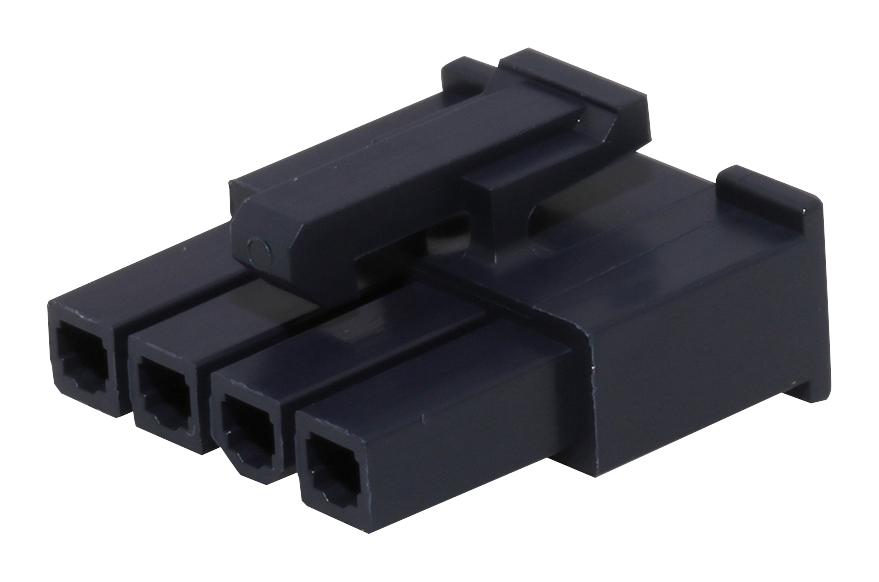

MOLEX 469940412 Mini-Fit Jr. Power Connector
The MOLEX 46994-0412 Mini-Fit Jr. Power Connector is a receptacle housing crafted from PA Nylon 6/6, offering robust performance in various electrical applications. Designed for power, wire-to-board, and wire-to-wire connections, this connector boasts a positive latch mechanism for secure mating and is glow-wire capable, meeting stringent safety standards. Its single-row configuration and 4-circuit design make it suitable for a wide range of industrial and commercial uses. The connector is RoHS compliant and operates effectively within a temperature range of -40°C to +105°C, ensuring reliable operation in diverse environments.
MOLEX 469940412 Mini-Fit Jr. Power Connector Specifications:
- series: 46994
- application_overview: Power, Wire-to-Board, Wire-to-Wire
- circuits_maximum: 4
- color_resin: Black
- flammability: 94V-2
- gender: Receptacle
- glow_wire_capable: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 1.236
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 4.20
- pitch_termination_interface_mm: 4.20
- polarized_to_mating_part: Yes
- ports_stackable: No
- temperature_range_operating_c: -40° to +105°C
- current_maximum_per_contact_a: 13.0
- lead_free_process_capability: N/A
- upc: 887191725642
- mates_with: 172646, 172647, 172648
- use_with: Mini-Fit Female Crimp Terminals 5556, Mini-Fit Plus Female Crimp Terminals 45750
- drawing_numbers_packaging_specification: PK-5557-002-000
- drawing_numbers_product_specification: PS-45750-001-001, PS-5556-001-001, TS-5556-002-001
- drawing_numbers_sales_drawing: SD-46994-0000
Buy the 46994-0412 MOLEX Mini-Fit Jr. Power Connector | myMectronic
Purchase the MOLEX 46994-0412 Mini-Fit Jr. Power Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 469940412?
You can click on the BUY or RFQ button to purchase 469940412 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 469940412?
You can download the 469940412 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 469940412?
MOLEX
