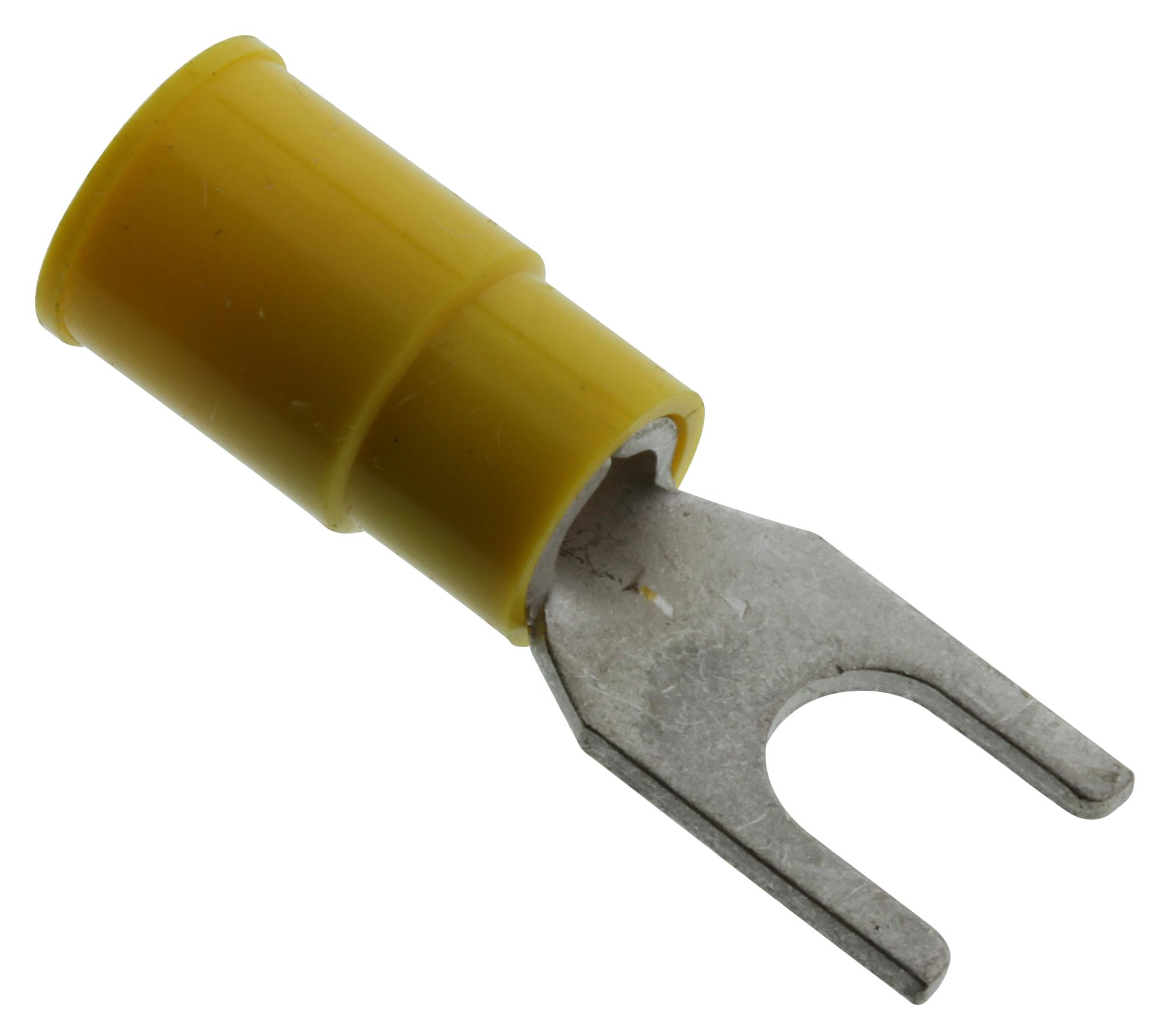

MOLEX 191310002 InsulKrimp Spade Block Terminal
The MOLEX 19131-0002 InsulKrimp Spade Block Terminal is a solderless terminal designed for secure and reliable wire connections. It's ideal for applications requiring a robust connection between wires and terminals, commonly found in automotive, industrial equipment, and consumer electronics. The terminal's InsulKrimp design ensures a consistent and high-quality crimp, while the stud size of 10 (M5) provides compatibility with a range of connectors and devices. Constructed with PVC insulation and a tin plating, this terminal offers excellent durability and corrosion resistance, ensuring long-lasting performance in demanding environments.
MOLEX 191310002 InsulKrimp Spade Block Terminal Specifications:
- Series: 19131
- Wire Size AWG: 10, 12
- Wire Size mm²: 3.30-5.00
- Stud Size: 10 (M5)
- Insulation Material: PVC
- Plating: Tin
- Flammability: 94V-0
- Color - Resin: Natural
- Barrel Type: Closed
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 6.40mm max.
- Net Weight: 1.782/g
- Packaging Type: Bag
- Mil-Spec: N/A
- Product Family: Ring and Spade Terminals
- Crimp Quality: Yes
- UPC: 800753101258
- Application Tooling - Hand Crimp Tool: 640010300
- Application Tooling - Crimp Head for AT-200: 640050100
- Engineering Number: C-2105-10X
- RoHS Phthalates: Not Contained
- EU ELV: Not Relevant
- China RoHS: Green Image
- Halogen-Free Status: Not Low-Halogen
- REACH SVHC: Contained Per ED/88/2018 (15 January 2019) - Di-(2-ethylhexyl)phthalate (DEHP)
