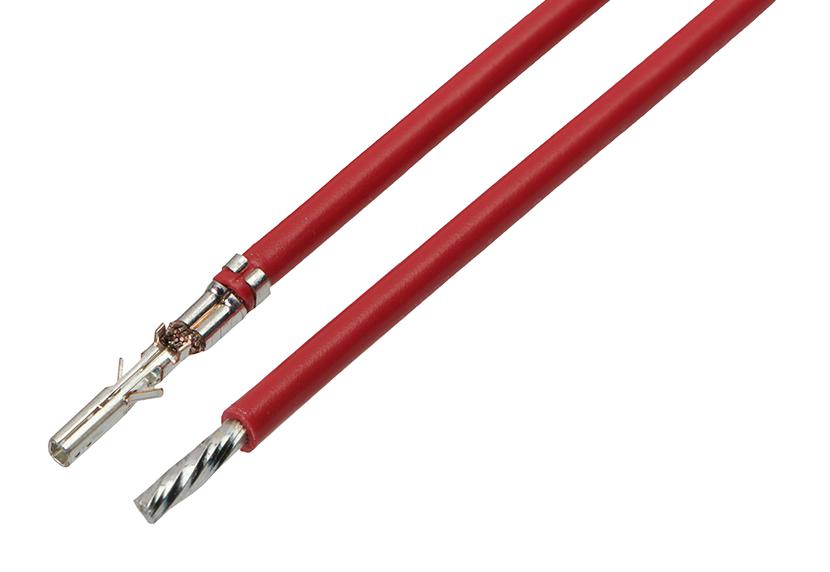

MOLEX 2147612201 Micro-Fit 3.0 Female-to-Pigtail
The MOLEX 2147612201 is a pre-crimped lead connector designed for versatile applications such as power distribution, wire-to-board connections, and wire-to-wire links. This Micro-Fit 3.0 connector offers a female-to-pigtail configuration, ensuring compatibility with various systems. The gold plating on the mating surface provides excellent conductivity and corrosion resistance, while the tin plating on the termination surface ensures reliable crimp connections. With a length of 75.00mm and 22 AWG wire size, this connector is suitable for a range of current-carrying requirements (up to 8.5A).
MOLEX 2147612201 Micro-Fit 3.0 Female-to-Pigtail Specifications:
- Series: 214761
- Application: Power, Wire-to-Board, Wire-to-Wire
- Cable Length: 75.00mm
- Circuits (Loaded): 1
- Color - Resin: Red
- Gender: Female-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Net Weight: 0.431/g
- Plating min - Mating: 0.762µm
- Plating min - Termination: 2.540µm
- Single Ended: Yes
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.85mm max.
- Wire Size AWG: 22
- Wire/Cable Type: UL 10002
- Current - Maximum per Contact: 8.5A
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
- RoHS Phthalates: Not Contained
- UPC: 193264574575
- Use With: Micro-Fit 3.0 Receptacle Housings (43025, 43645), Micro-Fit BMI Panel Mount Receptacle Housings (44133, 46623)
