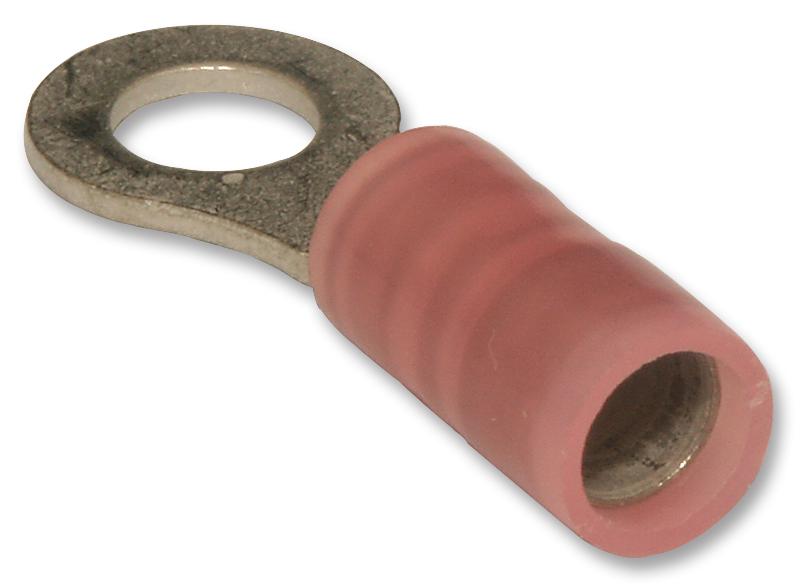

MOLEX 190670006 Ring Terminal
The NylaKrimp Funnel Entry Ring Tongue Terminal is designed for 8 AWG wire with a stud size of 10 (M5). It features a solderless crimp connection, fabricated with nylon (PA) for high durability and corrosion resistance. The terminal is RoHS compliant, halogen-free, and designed for secure and reliable electrical connections in industrial and electrical applications. It meets UL and CSA certifications, ensuring safety and quality standards. The terminal's insulation is nylon, and it uses tin plating for excellent conductivity and corrosion resistance. Designed for crimp or compression methods, it offers a compact, robust, and easy-to-install solution for wire termination.
MOLEX 190670006 Ring Terminal Specifications:
- Material: Nylon (PA)
- Plating Min - Mating: Tin
- Plating Min - Termination: Tin
- Wire Size AWG: 8
- Wire Insulation Diameter: 8.98 mm max.
- Stud Size: 10 (M5)
- Barrel Type: Closed - Brazed
- Flammability: UL 94V-2
- Certification: UL Listed, CSA Certified
- RoHS Compliance: Yes
- Halogen-Free: Yes
- Net Weight: 3.498 grams
- Packaging: Bag
- Part Number: 0190670006
- Reference Drawing Numbers: PS-19902-011-001, PS-19902-013-001, PS-19902-016-001
- Application: Solderless terminal for reliable electrical connection in industrial wiring, designed for crimp or compression connection methods.
Buy the Buy Molex Solderless Terminals Part Number 0190670006 Online
Order Molex Ring Terminal for 8 AWG wire with stud size 10 (M5). This solderless, crimp or compression terminal features nylon insulation, tin plating, UL and CSA certification, halogen-free design, and is RoHS compliant. Ideal for industrial wiring, it provides secure, corrosion-resistant, and reliable electrical connections. Easy to install, durable, and suitable for various electrical and industrial applications, this terminal ensures safety and efficiency in your wiring projects. Purchase online now for fast delivery and superior quality for your electrical needs.
Get Molex 0190670006 today—built for precise, reliable wiring connections and long-lasting durability in industrial applications.
