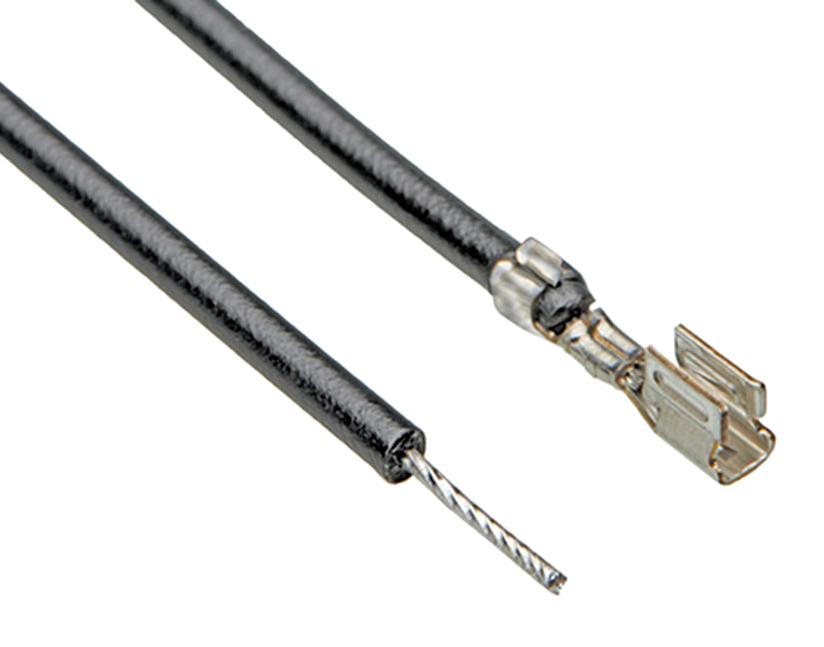

MOLEX 2175111114 L1NK 250 Pre-Crimped Lead
The MOLEX 217511-1114 is an off-the-shelf pre-crimped lead assembly specifically designed for use with L1NK 250 connectors. This assembly provides a convenient and reliable connection solution, eliminating the need for on-site crimping. It features a 300mm length, 24 AWG wire gauge, and tin plating on both mating and termination surfaces, ensuring excellent conductivity and corrosion resistance. Ideal for applications requiring pre-terminated connections in various industrial and commercial settings.
MOLEX 2175111114 L1NK 250 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- assembly_configuration: Pre-crimped Lead Only
- connector_type: L1NK 250 Terminal-to-Pigtail
- cable_length: 300.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Copper Alloy
- plating_mating: Tin
- plating_termination: Tin
- material_resin: PVC
- net_weight: 1.593/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.42mm-1.60mm
- wire_size_awg: 24
- wire_cable_type: UL 1569
- current_max_per_contact: 6.5A
- voltage_max: 250V AC (RMS)/DC
- upc: 195842119581
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per D(2020)9139-DC
- halogen_free_status: Not Low-Halogen
- use_with: L1NK 250 Receptacle Housing 207841
- sales_drawing: 2175112111-000
