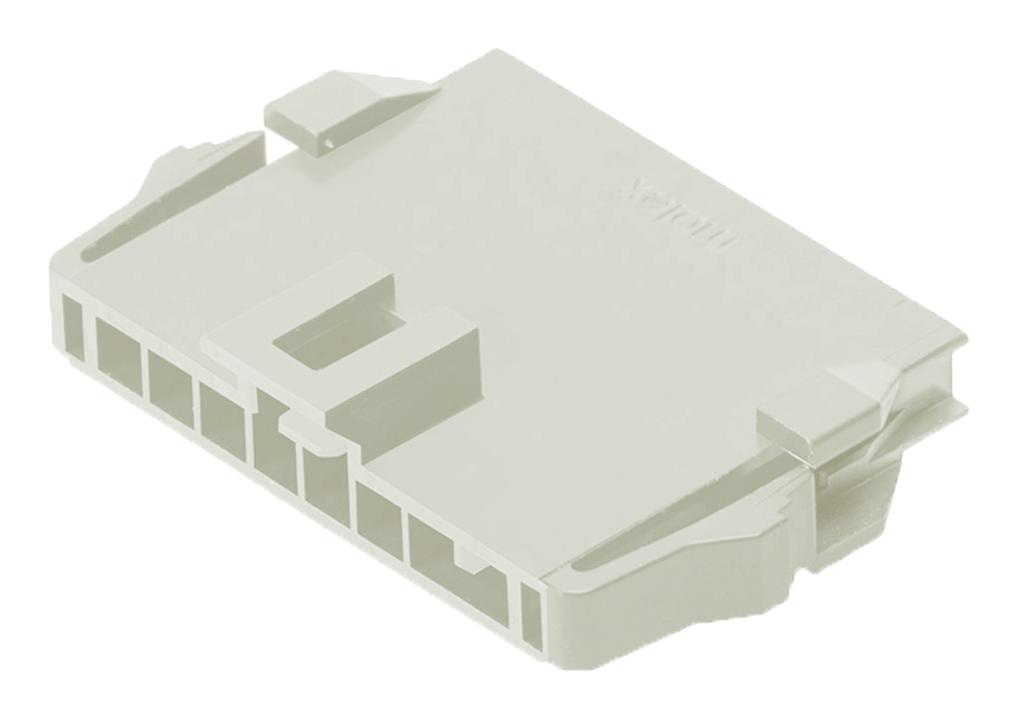

MOLEX 2002772204 Nano-Fit Power Connector
Nano-Fit Power Connectors offer a compact, fully isolated, and mechanically keyed solution featuring color-coded options for quick assembly and proper mating. Designed for PCB applications, these connectors deliver a low mating force, multiple contact points for enhanced reliability, and a secure, positive-lock housing to prevent accidental disconnection. Suitable for consumer electronics, automotive, aerospace, industrial, and medical applications, they enable high-density, space-saving designs with superior signal integrity, fast pick-and-place assembly, and robust performance over numerous mating cycles, ensuring long-term durability and ease of installation.
MOLEX 2002772204 Nano-Fit Power Connector Specifications:
- Voltage: 250V
- Current: 6.54A
- Contact Resistance: 10 milliohms over life
- Dielectric Withstanding Voltage: 1500V
- Insulation Resistance: 1000 Megohms
- Contact Insertion Force: 2.5N
- Contact Retention to Housing: 27N
- Mating/Unmating Force: 3N
- Durability: 20 cycles (Tin), 50 cycles (Gold)
- Housing Material - Receptacle: Nylon UL 94V-0, Header: LCP UL 94V-0
- Contact Material: High-Conductivity Copper
- Plating: Tin or 381) (15") Gold or 762)) (30") Gold, Solder Tail: Tin
- Operating Temperature: -40 to +105°C (Tin), -40 to +115°C (Gold)
- PCB Thickness: 1.60mm and 2.40mm
- RoHS Compliant, Halogen Free, Glow-Wire Capable
- Packaging: Terminals - Reel, Headers - Tray, Receptacles - Bag
Buy the Buy Nano-Fit Power Connectors Part Number 2002772204 Online
Purchase Nano-Fit Power Connectors online today and ensure reliable, space-efficient electrical connections for your electronic projects. These connectors feature keying options and color coding for quick, correct assembly and prevent cross-mating. Designed for a broad range of applications, they provide secure interlocking, low mating force, and high durability over hundreds of cycles. Their compact size helps save PCB space and simplifies manufacturing with fast pick-and-place assembly. Get high-quality, robust, and easy-to-install connectors delivered right to your door now.
Buy Nano-Fit Power Connectors 2002772204 now and experience unmatched reliability and performance with space-saving, easy-to-assemble electrical solutions.
Frequently Asked Questions
Where can I buy MOLEX 2002772204?
You can click on the BUY or RFQ button to purchase 2002772204 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2002772204?
You can download the 2002772204 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2002772204?
MOLEX
