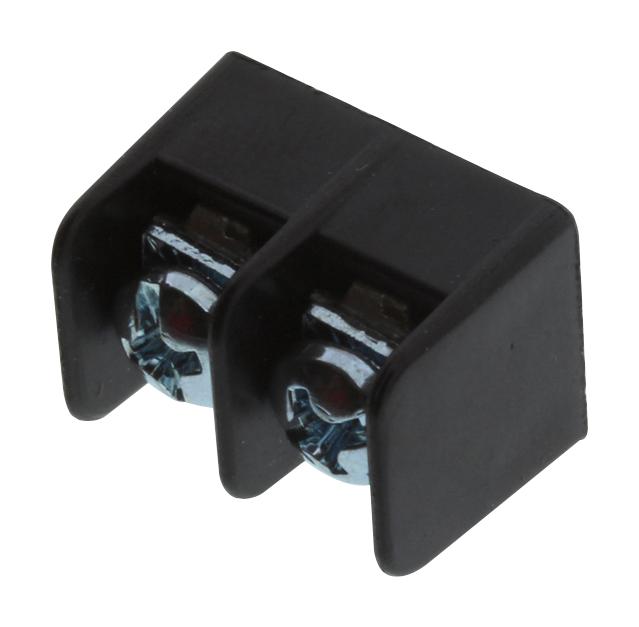

MOLEX 387007502 Barrier Strip
The 8.26mm pitch Beau Barrier Strip is a reliable terminal block designed for industrial applications. Featuring two circuits, it does not include mounting ends and comes with a screw clamp washer for secure connections. Constructed with brass metal and tin plating, it ensures excellent electrical conductivity and corrosion resistance. Its horizontal entry angle and 8.26mm pitch make it compatible with a wide range of PCB configurations. Rated for -40°C to +130°C and capable of handling up to 20A and 300V, this barrier strip is suitable for demanding electrical environments.
MOLEX 387007502 Barrier Strip Specifications:
- Pitch - Mating Interface: 8.26mm
- Number of Circuits: 2
- Material - Metal: Brass
- Material - Plating: Tin
- Color - Resin: Black
- Rating - Current per Contact: 20.0A
- Voltage - Maximum: 300V
- Temperature Range: -40°C to +130°C
- Wire Size: AWG 12, 14, 16, 18, 20, 22
- Wire Size mm?: 0.50-2.50
- Entry Angle: Horizontal
- Surface Mount Compatible: No
- Stackable: Yes
- Termination Interface: Through Hole
- Lock to Mating Part: None
- RoHS Compliant: Yes
- Halogen-Free: Yes
Buy the Molex 387007502 – Reliable Barrier Strip for Industrial Applications
Purchase the Molex Barrier Strip 387007502 online now to ensure secure, reliable connections in your industrial electrical projects. Designed with a 8.26mm pitch and 2 circuits, this strip features a through hole termination style, capable of handling up to 20A and 300V. Made from brass with tin plating, it offers excellent conductivity and corrosion resistance. Its horizontal entry angle makes installation straightforward, fitting wire sizes from 0.50 to 2.50 mm² (AWG 12-22). An ideal choice for demanding electrical environments requiring durable and safe terminal connections.
Order your Molex Series387007502 barrier strip today and enhance the safety and reliability of your electrical assemblies with this high-quality terminal block.
