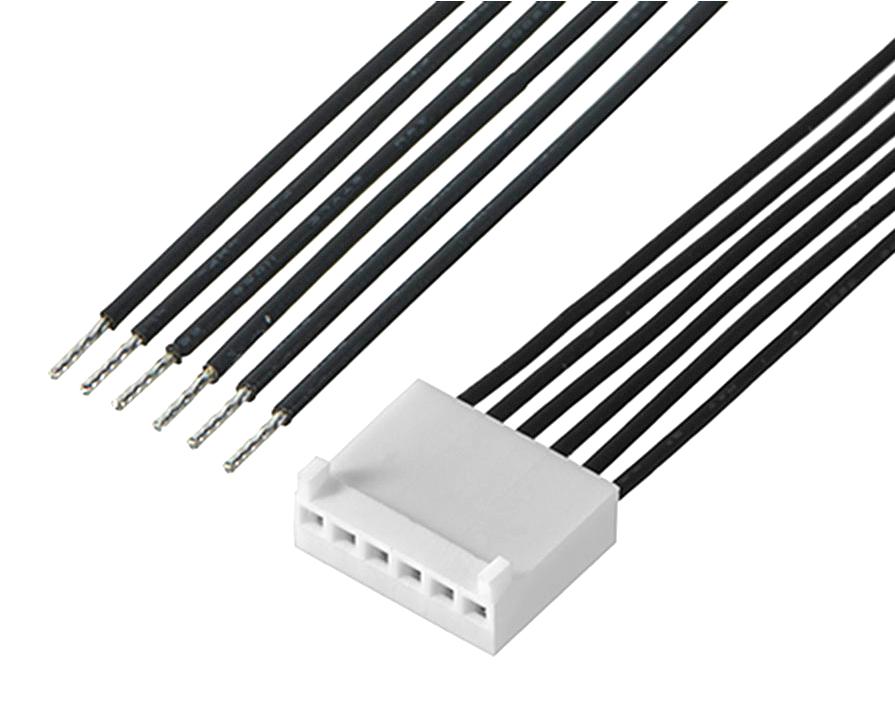

MOLEX 2177971061 KK 254 Cable Assembly
The MOLEX 217797-1061 is a KK 254-to-Pigtail Off-the-Shelf (OTS) cable assembly designed for versatile applications requiring robust and readily available connectivity. This assembly features a 2.54mm pitch, 6 circuits, and a 150mm length, making it suitable for connecting KK 254 PCB headers. Constructed with brass and plated with tin for both mating and termination interfaces, it offers excellent conductivity and durability. The natural resin (white) color and female-pigtail gender configuration enhance its usability and integration into diverse systems. It is RoHS compliant and features low halogen content.
MOLEX 2177971061 KK 254 Cable Assembly Specifications:
- Assembly Configuration: Dual Ended
- Connectors: KK 254-to-Pigtail
- Cable Length: 150.00mm
- Circuits (Loaded): 6
- Color - Resin: Natural (White)
- Gender: Female-Pigtail
- Lock to Mating Part: Yes
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 5.049/g
- Number of Rows: 1
- Pitch - Mating Interface: 2.54mm
- Plating min - Mating: 2.540µm
- Single Ended: No
- Termination Interface Style: Crimp or Compression
- Wire Insulation Diameter max: 1.57mm
- Wire Size AWG: 22
- Wire/Cable Type: UL 11028
- UPC: 195842123106
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- Mates With: KK254 PCB Headers, 42375, 42377, 42376, 4030, 6373, 6410, 171856, 171857
- Sales Drawing: 2177971061-000
