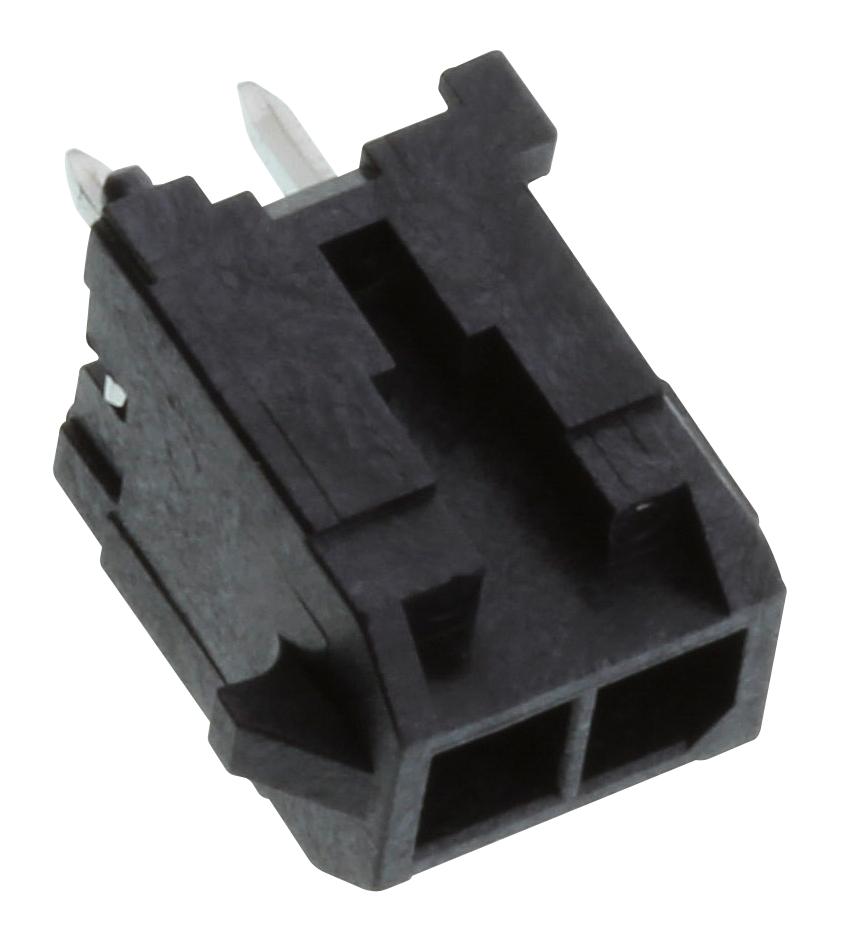

MOLEX 430450227 Power Connector
This Micro-Fit 3.0 vertical header features a 3.00mm pitch, dual row, and 2 circuits, with PCB polarizing peg, tin plating, and glow-wire capability, designed for power wire-to-board applications. Manufactured with high safety standards, it passes glow wire ignition temperature tests of at least 775°C and a flammability index above 850°C. Suitable for high-temperature environments from -40°C to +105°C, it is CSA and UL certified, offering reliable electrical performance with a maximum current of 8.5A and voltage of 600V. The connector withstands up to 30 mating cycles, ensuring durability in industrial use.
MOLEX 430450227 Power Connector Specifications:
- Pitch - Mating Interface: 3.00mm
- Number of Rows: 2
- Circuits (Loaded): 2
- Circuits (Maximum): 2
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 0.482g
- Lock to Mating Part: Yes
- Mated Height: 17.64mm
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Surface Mount Compatible (SMC): Yes
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Tray
- PCB Tail Length: 3.18mm
- Material - Metal: Brass
- Specification Document: PS-43045, PS-43045-001, TS-43045-001-001
- Certifications: CSA, UL
Buy the Molex 0430450227 – Reliable Power Connector for Industrial Applications
Secure your power connections with this high-quality Micro-Fit 3.0 connector, offering a 3.00mm pitch, dual row configuration, and robust materials. Designed for industrial applications, it features excellent safety standards, glow-wire capability, and long-lasting durability to withstand repeated mating cycles. Its UL and CSA certification ensures compliance with international safety norms, while its operating temperature range from -40°C to +105°C makes it suitable for various demanding environments. Easy to install and reliable in high-current settings, purchase online for swift delivery and seamless integration into your projects.
Buy Molex 0430450227 now and experience unmatched reliability, safety, and performance in power wire-to-board connections.
