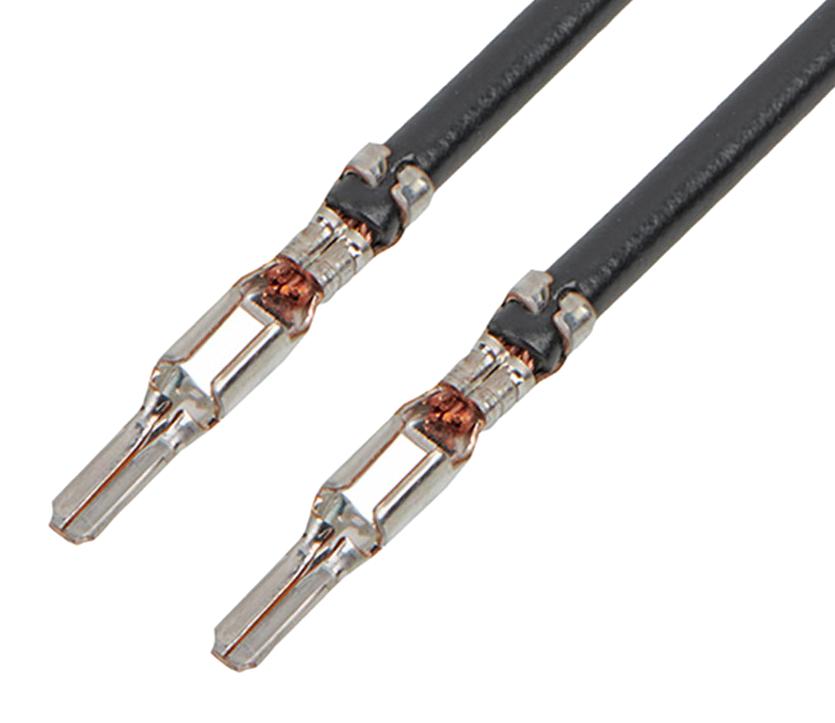

MOLEX 2178421125 Mizu-P25 Pre-Crimped Lead
The MOLEX 217842-1125 is a pre-crimped lead assembly specifically engineered for Mizu-P25 connector systems. This assembly provides a ready-to-use connection solution, eliminating the need for on-site crimping. With a tin plating for enhanced conductivity and corrosion resistance, a 450.00mm length for flexible routing, and a 20 AWG wire gauge for reliable signal transmission, this lead is ideal for wire-to-wire signal applications in various industrial and commercial settings. It is an active component compliant with RoHS standards.
MOLEX 2178421125 Mizu-P25 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Signal, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mizu-P25
- crimp_terminals_overview: Off-the-Shelf Pre-Crimped Leads
- cable_length: 450.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 3.104/g
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.40-1.90mm
- wire_size_awg: 20
- wire_cable_type: UL 10002
- voltage_maximum: 125V
- upc: 195842150003
- series: 217842
- elv: Not Relevant
- rohs: China RoHS Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- drawing_number: 2178421121-000
