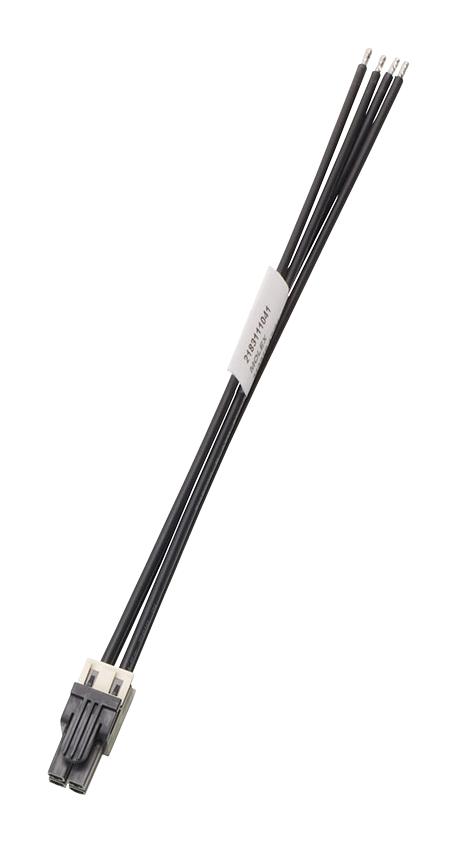

MOLEX 2183111043 Mini-Fit Power Connector
The 218311 series Mini-Fit Sigma-to-pigtail off-the-shelf cable assembly features a dual-row, 4.2mm pitch design with a black nylon housing. It delivers up to 11.5A current and is rated for a maximum voltage of 600VAC/DC. The assembly is glow wire capable with V-0 classification, meeting European safety standards, and is certified by UL and CSA. Made with brass contacts and tin plating, it ensures at least 30 mating cycles. Operating within -20°C to +105°C, it uses 16 AWG wire, conforms to UL 11028, and offers crimp or compression termination options. Positive locking housings with thumb latches secure connections, and polarized design prevents mismating, suitable for automotive, industrial, medical, and communication applications.
MOLEX 2183111043 Mini-Fit Power Connector Specifications:
- Pitch: 4.20mm
- Number of Circuits: 4
- Color: Black
- Housing Material: Nylon
- Contact Material: Brass
- Contact Plating: Tin
- Wire Gauge: 16 AWG
- Wire Length: 600.00mm
- Current Rating: 11.5A
- Voltage Rating: 600VAC/DC
- Operating Temperature Range: -20°C to +105°C
- Durability: Minimum 30 mating cycles
- Termination Style: Crimp or Compression
- Mating Compatibility: Mini-Fit Sigma plug housing, Mini-Fit Jr. headers
- Standards Compliance: UL, CSA, RoHS, China RoHS, REACH SVHC, Halogen-Free
- Glow Wire: V-0 classification, compliant with European safety standards
Buy the Molex Series Mini-Fit Power Connectors: 2183111043
Purchase Molex 2183111043 online today and enjoy reliable power connection solutions for automotive, industrial, and medical applications. This high-quality mini-fit connector features a dual-row design with a 4.2mm pitch, rated for 11.5A and 600VAC/DC. Constructed with durable brass contacts and tin plating, it offers at least 30 mating cycles and operates efficiently from -20°C to +105°C. With secure positive locking housings and polarized geometry, it prevents mismating and ensures robust connections in a variety of demanding environments. Order now for quick delivery!
Buy Molex 2183111043 now and experience unmatched reliability and performance with secure locking and high current capacity for your power needs.
Frequently Asked Questions
Where can I buy MOLEX 2183111043?
You can click on the BUY or RFQ button to purchase 2183111043 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2183111043?
You can download the 2183111043 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2183111043?
MOLEX
