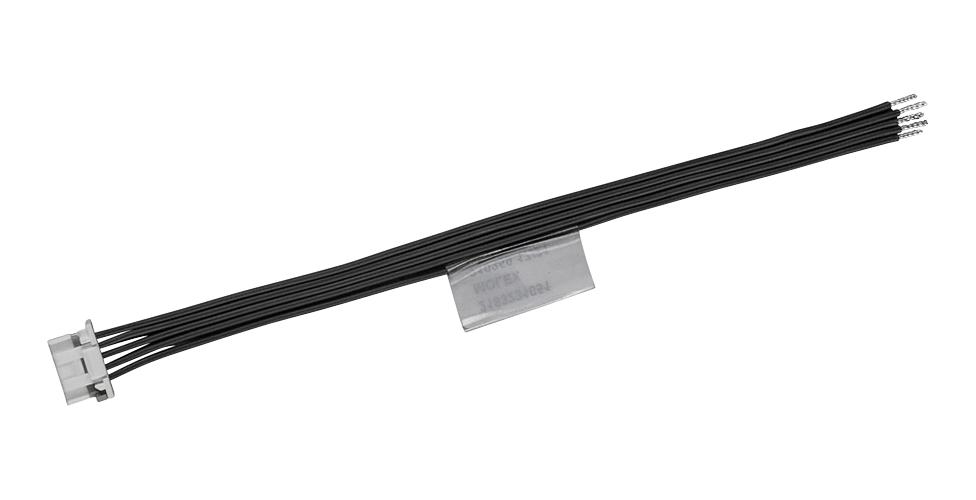

MOLEX 2183231051 Cable Assembly
The 218323 series DuraClik ISL-to-Pigtail cable assembly features a 2mm pitch with a secure, enclosed contact design that protects against dust and debris. It provides reliable mating with an audible click confirmation, ensuring proper connection. Rated for 60V AC/DC and compatible with 22 AWG wire, it is made with a white PBT housing. Contacts are copper alloy with tin plating and nickel underplating for durability. Suitable for automotive, industrial automation, and consumer devices, it withstands temperatures from -40°C to +105°C and supports up to 20 mating cycles. It offers flexible crimp or compression termination options.
MOLEX 2183231051 Cable Assembly Specifications:
- Connector type: DuraClik ISL-to-Pigtail
- Pitch: 2.00mm
- Cable Length: 150.00mm
- Number of Circuits: 5
- Color: White
- Housing Material: PBT
- Contact Material: Copper Alloy
- Contact Plating: Tin
- Voltage Rating: 60V AC/DC
- Current per Contact: 3.0A
- Wire Size: 22 AWG
- Wire Insulation Diameter: 1.30mm
- Operating Temperature Range: -40°C to +105°C
- Mating Cycles: Up to 20
- Termination Style: Crimp or Compression
- Cable Type: Discrete Wire Assembly
Buy the Molex 2183231051 – Reliable Connector for Industrial Applications
Purchase the Molex 2183231051 cable assembly online today—engineered for high performance in automotive, industrial automation, and consumer electronics. Featuring a 2mm pitch, this assembly provides a secure, dust-resistant connection with easy mating confirmation via audible click. Constructed with durable copper alloy contacts plated with tin, it supports up to 20 mating cycles and operates within a temperature range of -40°C to +105°C. Its flexible termination options include crimp or compression, making it ideal for various wiring needs and ensuring reliable, long-lasting connections in challenging environments.
Get Molex 2183231051 today—built for precision, durability, and reliable connectivity in demanding industrial environments.
