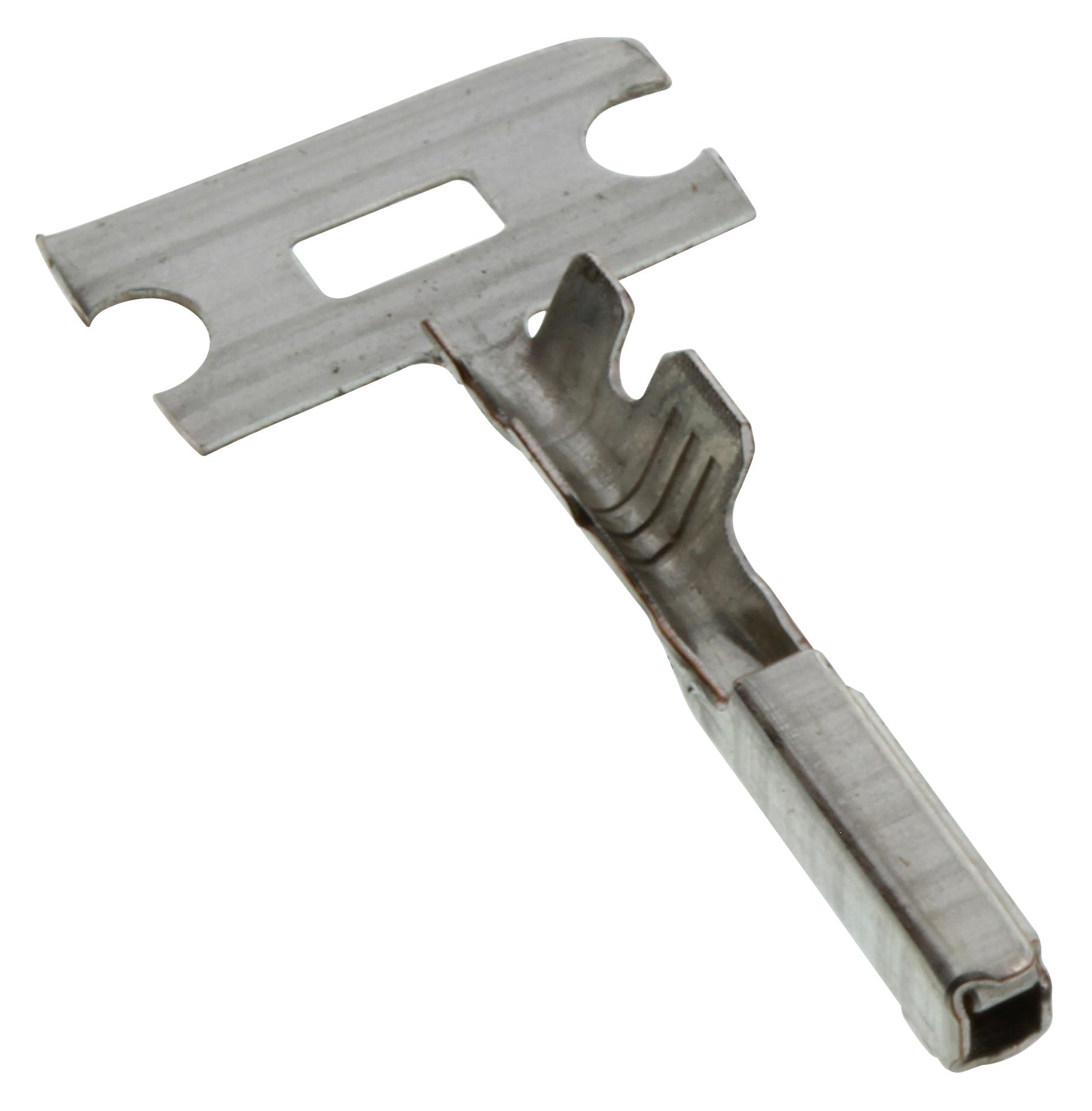

MOLEX 334680003 MX64 Terminal
The MOLEX 33468-0003 is a crucial component in MX64 Sealed Connectors systems, providing a reliable connection for power applications, including wire-to-board and wire-to-wire configurations. This terminal utilizes a 2.54mm pitch and features tin plating for enhanced conductivity and corrosion resistance. Designed for compatibility with MX123 and MX64 female receptacle housings, it supports wire gauges of 18-20 AWG. For automated and semi-automatic crimping processes, it's recommended to utilize Left Reel Payoff terminals to ensure optimal performance and consistent results. Refer to the sales drawing for specific Left Reel Payoff part numbers.
MOLEX 334680003 MX64 Terminal Specifications:
- Material - Metal: Copper
- Material - Plating: Tin
- Plating min - Mating: 2.20/g
- Packaging Type: Reel
- Plating min - Termination: 1.905µm
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 1.50-2.06mm
- Wire Size AWG: 18, 20
- Wire Size mm²: N/A
- Product Family Series: 33468
- EU ELV: Compliant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- Application: Wire-to-Board, Wire-to-Wire
- Pitch: 2.540µm
Buy the 33468-0003 MOLEX MX64 Terminal | myMectronic
Purchase the genuine MOLEX 33468-0003 terminal securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 334680003?
You can click on the BUY or RFQ button to purchase 334680003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 334680003?
You can download the 334680003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 334680003?
MOLEX
