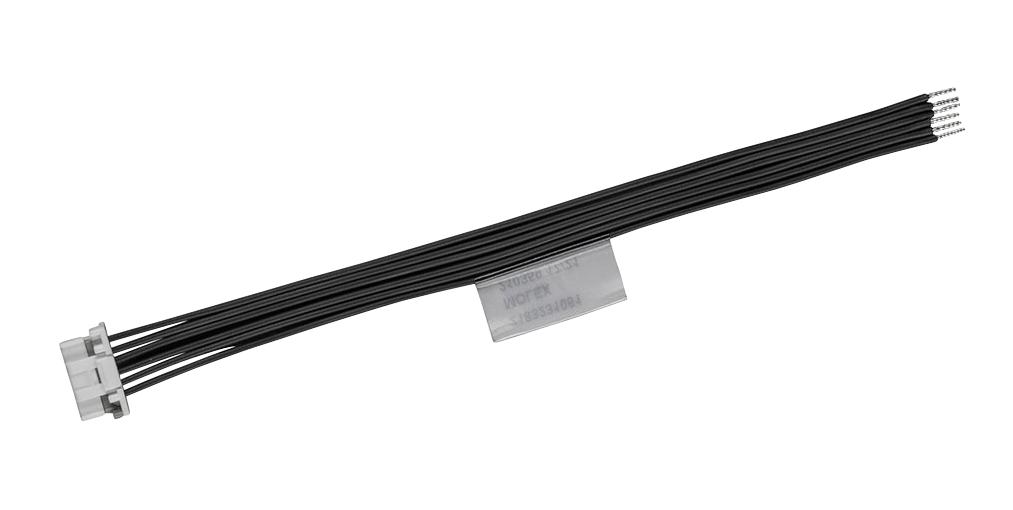

MOLEX 2183231061 Cable Assembly
The 218323 series 2mm pitch DuraClik ISL-to-Pigtail cable assembly provides a reliable and versatile connection solution for electronic applications. It features an audible click for confirmation of secure mating, an enclosed contact design to shield against dust and debris, and supports flexible assembly options. With a maximum voltage of 60V AC/DC and a 22 AWG wire, it is housed in a durable white PBT resin casing. Contacts are copper alloy with tin plating, ensuring long-lasting performance. Suitable for -40°C to +105°C, it employs crimp or compression terminations and withstands up to 20 mating cycles.
MOLEX 2183231061 Cable Assembly Specifications:
- Type: Discrete Wire Assembly
- Series: 218323
- Application: Automotive, Signal, Wire-to-Board
- Assembly Configuration: Connector to Connector, Overmolded
- Physical: Cable Length 150.00mm, Color - Resin White, Weight 5.280 grams
- Electrical: Current - Maximum per Contact 3.0A, Voltage - Maximum 60V AC/DC
- Material: Contact Material Copper Alloy, Plating Tin, Mating Plating Tin, Resin Material PBT
- Wire Insulation Diameter 1.30mm, Wire Size AWG 22
- Termination Style: Crimp or Compression, Insulation Diameter 1.30mm
- Number of Rows: 1, Female-Pigtail, Lock to Mating Part: Yes
- Temperature Range: -40°C to +105°C
- Mating Cycles: Up to 20 cycles
- Certifications: RoHS Compliant, REACH SVHC Not Contained
- Additional Features: Audible click, dust protection, flexible design, metal contact with tin plating
Buy the Molex 218323 U–2013 Reliable Cable Assembly for Industrial Applications
Discover the reliable Molex cable assembly designed for industrial and electronic applications. With a 2mm pitch, audible click, dust protection, and durable materials, this assembly ensures secure connections in demanding environments. Supports up to 60V and 3A current, housed in a sturdy white PBT casing, with crimp or compression termination options. Ideal for applications requiring robust, long-lasting, and flexible wire-to-board or connector-to-connector connections. Purchase online today for quick, secure delivery and consistent performance in your projects.
Get Molex 218323 today—designed for reliable connections with dust protection and long-lasting durability.
