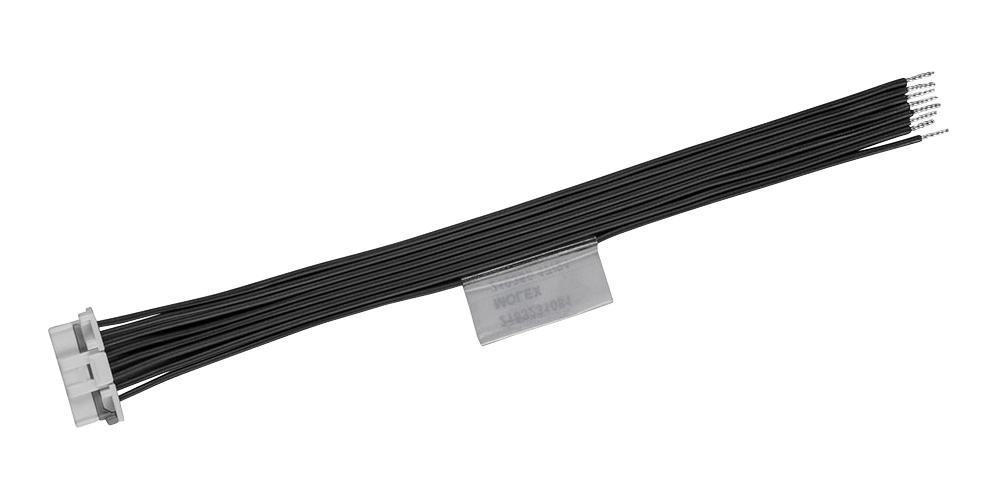

MOLEX 2183231081 DuraClik Connector System
The 218323 series DuraClik ISL-to-Pigtail cable assembly features a 2mm pitch design with an audible click upon mating confirmation. Its enclosed contact design protects against dust and debris and prevents tangling during harness assembly. Suitable for automotive, commercial vehicles, consumer electronics, and industrial automation, it supports a maximum voltage of 60V AC/DC and 22 AWG wire. With a white PBT housing, copper alloy contacts with tin plating, and nickel underplating, it operates reliably from -40°C to +105°C. Termination options include crimp or compression, supporting up to 20 mating cycles.
MOLEX 2183231081 DuraClik Connector System Specifications:
- Pitch - Mating Interface: 2.00mm
- Number of Circuits: 8
- Cable Length: 150.00mm
- Color - Resin: White
- Gender: Female-Pigtail
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: PBT
- Wire Insulation Diameter: 1.30mm
- Wire Size AWG: 22
- Wire/Cable Type: 1x0.35mm FLRY-A
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 60V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Durability: Up to 20 mating cycles
Buy the Molex Series DuraClik ISL-to-Pigtail Connector: 2183231081
Order the Molex DuraClik ISL-to-Pigtail connector with 2mm pitch, 8 circuits, and rugged design for automotive, industrial, and consumer electronics. Featuring a white PBT housing with dust-proof contacts, compatible with 22 AWG wire, and rated up to 60V AC/DC. The connector ensures quick mating with a tactile click and supports up to 20 mating cycles. Its reliable crimp or compression termination offers durability in varied temperature ranges from -40°C to +105°C, making it an ideal solution for complex harness assemblies requiring secure connection and protection against environmental factors.
Buy Molex 2183231081 now and experience unmatched reliability and performance with an easy-to-mate design and robust dust protection for demanding industrial and automotive applications.
