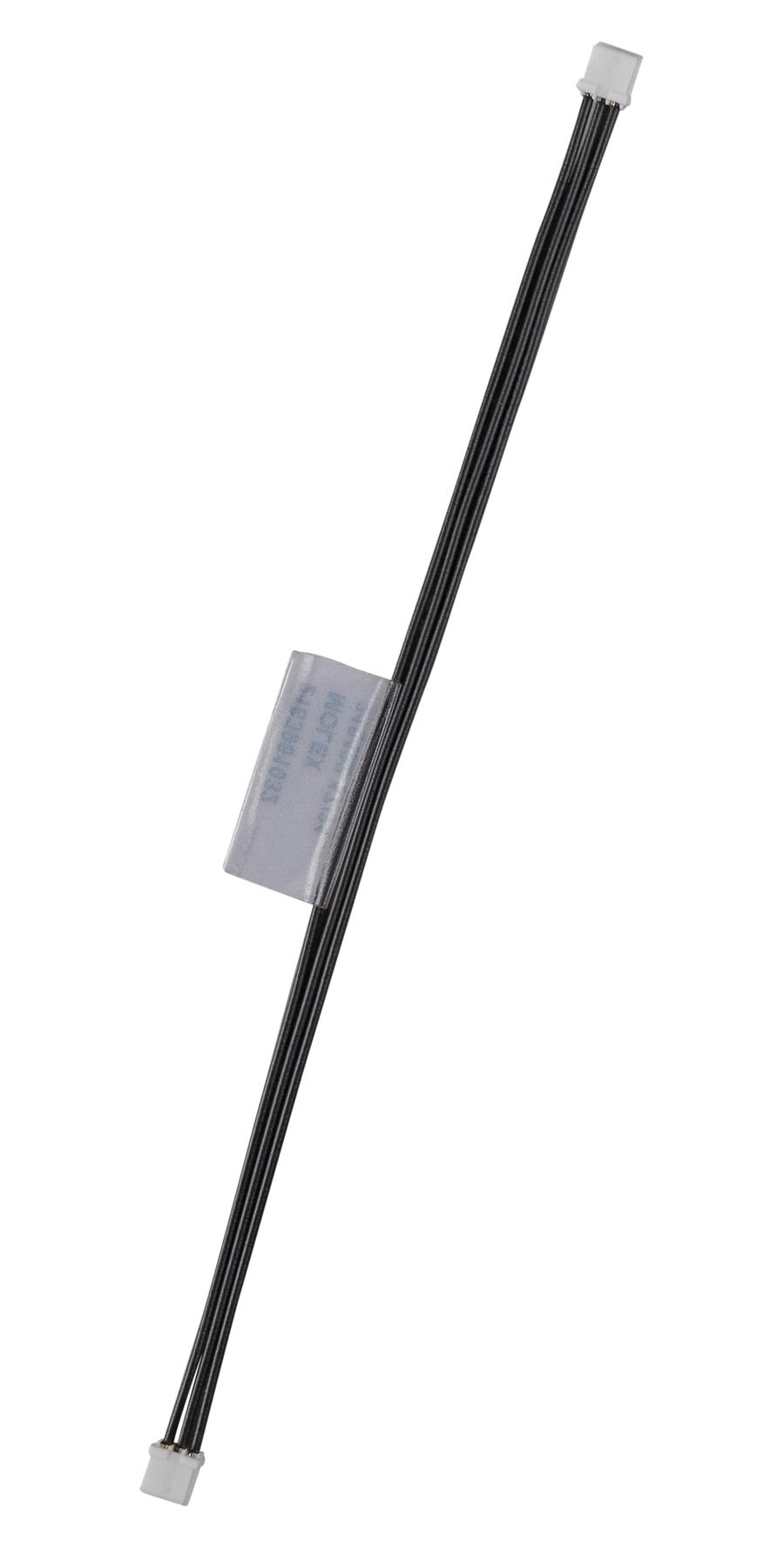

MOLEX 2183961031 Pico-SPOX Cable Assembly
The MOLEX 218396-1031 is a Pico-SPOX wire-to-board connector system designed for signal transmission in various applications. This dual-ended cable assembly boasts a 1.50mm pitch, 3 circuits, and a 100.00mm length, making it suitable for compact designs. The phosphor bronze material and tin plating ensure robust performance and reliable connectivity. It is ideal for applications requiring a secure and efficient wire-to-board connection.
Authorized Distributors
Source:Mouser Electronics
Part No:218396-1031
Stock:2304
Inv Date:05-30-2026
Price: Unit price: $1.76
Buy/RFQ:
Source:RS Americas, Inc
Part No:218396-1031
Stock:0
Inv Date:05-29-2026
Price: Unit price: $1.67
Buy/RFQ:
Source:Master Electronics
Part No:218396-1031
Stock:275
Inv Date:05-29-2026
Price: Unit price: $1.518
Buy/RFQ:
Source:Onlinecomponents.com
Part No:218396-1031
Stock:275
Inv Date:05-29-2026
Price: Unit price: $1.518
Buy/RFQ:
MOLEX 2183961031 Pico-SPOX Cable Assembly Specifications:
- product_family: Cable Assemblies
- series: 218396
- application: Signal, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector
- overview: Pico-SPOX Wire-to-Board Connector System
- type: Discrete Wire Assembly
- upc: 195842352018
- cable_length: 100.00mm
- circuits_loaded: 3
- color_resin: Natural
- material_metal: Phosphor Bronze
- material_plating: Tin (Sn)
- material_resin: Nylon
- net_weight: 1.000/g
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 1.50mm
- plating_min_mating: 2.540µm
- plating_min_termination: 2.540µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.95-1.20mm
- wire_size_awg: 24
- wire_cable_type: UL 10002
- current_maximum_per_contact: 2.5A
- voltage_maximum: 250V
- elv_not_relevant: Not Relevant
- china_rohS: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- drawing_number: 2183961030-000
Buy the 218396-1031 MOLEX Pico-SPOX Cable Assembly | myMectronic
Purchase the MOLEX 218396-1031 Pico-SPOX Cable Assembly securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2183961031?
You can click on the BUY or RFQ button to purchase 2183961031 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2183961031?
You can download the 2183961031 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2183961031?
MOLEX
